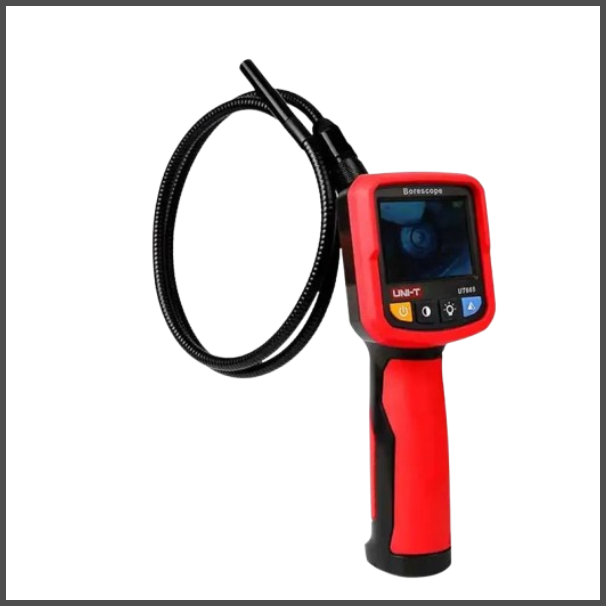

Borescopes, UT665, Borescope 2.4INCH LCD 640X480 Pixels, 6 Level ADJ Brightness & 4 Level ADJ Illumination
SKU: UT665
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT665 Borescope is a portable inspection camera that allows for real-time visual access to limited and difficult-to-reach regions.
The flexible 9 mm camera probe has an IP67 waterproof rating, and the built-in LED lighting provides adjustable illumination for crisper examination images.
The UT665 is ideal for vehicle maintenance, air conditioning systems, electronic equipment, machinery, and general industrial inspection.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Real-time clear image display.
640 × 480-pixel camera resolution.
2.4-inch TFT LCD screen.
6-level adjustable image brightness.
4-level adjustable LED illumination.
4 LED lights.
Rotatable/flappable image.
9 mm camera lens diameter.
180° viewing angle.
60° field of view.
Flexible 1 m camera probe.
Maximum compatible camera probe length of 3 m.
IP67 waterproof probe.
Focusing distance of 20–100 mm.
Battery power indicator.
Suitable for inspection of difficult-to-access areas.
Specifications:
Product Type: Borescope / Inspection Camera.
Camera Pixels: 640 × 480.
LCD Size: 2.4 inches.
Display Type: TFT.
Probe Length: 1 m.
Maximum Applicable Probe Length: 3 m.
Lens Diameter: 9 mm (10 mm maximum).
Light Source: 4 LED lights.
Image Brightness: 6 levels, adjustable.
Illumination: 4 levels, adjustable.
Focusing Distance: 20–100 mm.
Depth of Field: >20 mm.
Field of View: 60°.
Viewing Angle: 180°.
Probe Waterproof Rating: IP67 (probe only).
Video Signal: Analog.
Image Rotation / Flip: Yes.
Battery Power Indicator: Yes
Power Supply: 4 × 1.5 V R6 batteries.
Dimensions: 196 × 74 × 38 mm.
