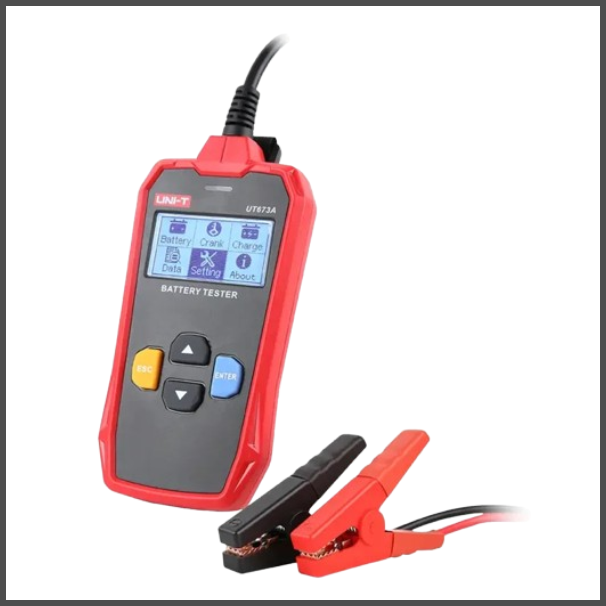

Battery Testers, UT673A, Digital Battery Tester 12V/24V Charger Analyzer Automotive Storage/AGM/GEL/EFB Battery and Start-Up Test
SKU: UT673A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT673A Digital Battery Tester is a professional automobile battery and starting/charging system analyser for batteries ranging in capacity from 3 Ah to 250 Ah.
It employs a four-terminal Kelvin test method to offer precise battery measurements without requiring battery removal or disassembly.
The UT673A supports a variety of battery standards, including CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, and Ah, making it ideal for testing a wide range of automotive batteries.
Buy currently uses Select Automation shop pricing and checkout.
Features:
12 V battery testing.
12 V/24 V cranking system testing.
12 V/24 V charging system testing.
Suitable for:
Ordinary lead-acid batteries.
AGM flat-plate batteries.
AGM spiral batteries.
GEL batteries.
EFB batteries.
Battery capacity range of 3–250 Ah.
Displays:
Battery capacity.
Battery voltage.
Internal resistance.
Battery status.
Battery life.
Four-terminal Kelvin test method.
Tests batteries without disassembly.
Supports 10 battery testing standards.
Supports Chinese and English language options.
Overvoltage protection.
Reverse-connection protection.
Poor-contact indication.
LED colour indication of test results.
Compact and lightweight handheld design.
Specifications:
Product Type: Digital Automotive Battery Tester / Battery Analyzer.
12 V Battery Test Range: 7–16 V DC.
12 V/24 V Cranking System Test: 7–30 V DC.
12 V/24 V Charging System Test: 7–30 V DC.
Battery Capacity: 3–250 Ah.
Battery Types: Lead-acid, AGM Flat Plate, AGM Spiral, GEL, EFB.
Battery Standards: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, Ah.
CCA Range: 40–2000.
BCI Range: 40–2000.
CA Range: 40–2000.
MCA Range: 40–2000.
JIS Range: 26A17–245H52.
DIN Range: 40–1400.
IEC Range: 40–1400.
EN Range: 40–2000.
SAE Range: 40–2000.
Ah Range: 3–250 Ah.
Test Method: Four-terminal Kelvin test.
Battery Voltage Display: Yes.
Battery Internal Resistance Display: Yes.
Battery Capacity Display: Yes.
Battery Life Display: Yes.
Battery Status Display: Yes.
LED Test Result Indicator: Yes.
Overvoltage Protection: Yes.
Reverse-Connection Protection: Yes.
Poor Contact Indication: Yes.
Display: 128 × 64 black-and-white lattice display.
Power Supply: Powered by external battery under test.
Dimensions: 76 × 22 × 142 mm.
