General Environment Testers, UT673PV, Solar MPPT Meter
SKU: UT673PV
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solar MPPT Meter,
• Multiple Results Screen,
• No Batteries Needed (powered by Solar Panel),
• Portable and Convenient,
• Max Power Measurement 5~800W,
• Max Power Current (DC) 0~35A,
• Max Power Voltage (DC) 10~80V,
• Open Circuit Voltage (DC) 10~80V,
• Short Circuit Current (DC) 10~35A,
• Display; Large LCD 52 x 66mm,
• Reverse Polarity Connect Protection,
• Over Voltage Protection,
• Over Current Protection,
• Over Temperature Protection,
• Over Power Protection,
• Manual MPPT Test,
• Data Hold,
• Comes with MC4 Connector,
• Over category CAT 0 100V
Buy currently uses Select Automation shop pricing and checkout.

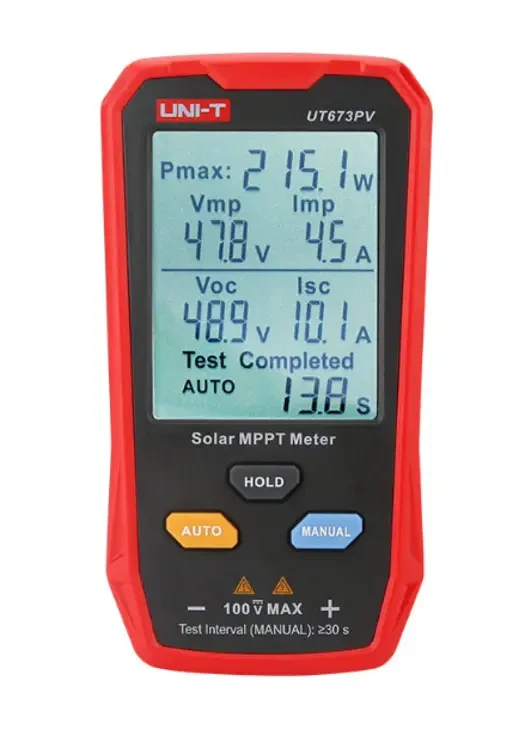

UT673PV Solar MPPT Meter
• UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current.
• Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously.
• Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users.
