Electrical Installation Testers, UT677A, Battery Internal Resistance Tester
SKU: UT677A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Battery Resistance Tester,
• Battery Internal Resistance Test 0~3Ω (4 ranges),
• Battery Voltage Test 0~71V,
• Temperature Measurement -10.0℃~60.0℃,
• Manual & Auto Measurement,
• PC Software & Blue Tooth APP Supported,
• Built-in Rechargeable Battery,
• APO,
• Low Battery Indication,
• Fast Reponse Time (200ms),
• Test Time 2s,
• Data Hold,
• Data Storage 50000 Set,
• Car Battery Test,
• Battery Module Inspection,
• Battery R&D Measurement,
• High-voltage Battery Pack Inspection,
• Lithium Battery,
• Lead-acid Battery,
• Super Capacitor Internal Resistance Test,
• Button Battery Verification Test when mass production,
• Suitable for Safety Regulations IEC61010
Buy currently uses Select Automation shop pricing and checkout.

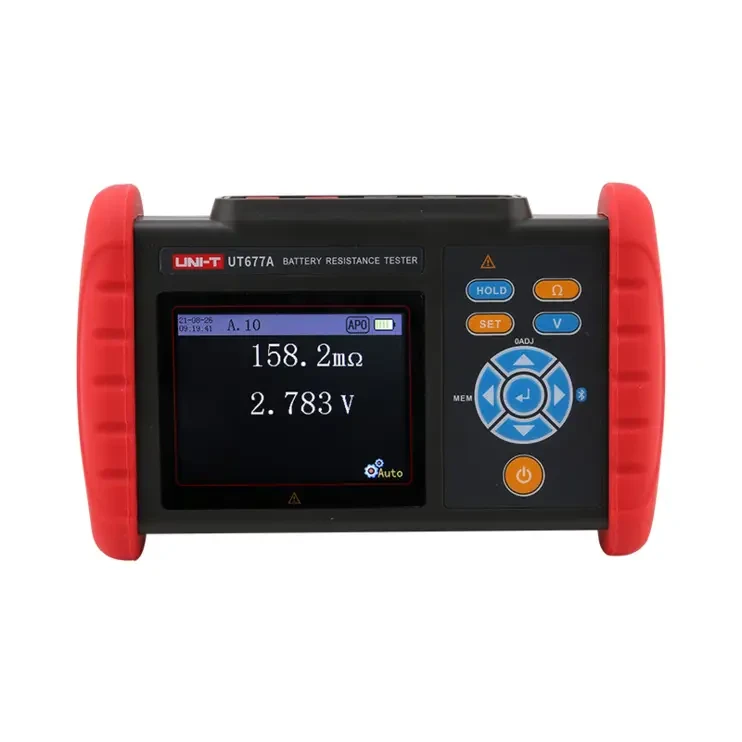

UT677A Battery Internal Resistance Tester
• The battery internal resistance tester is a measuring instrument used to measure the internal resistance, voltage, and temperature of rechargeable batteries such as lead-acid batteries and lithium batteries to judge the health status of the battery.
• It can also be used as an instrument to measure the ESR parameters of electrolytic capacitors.
• UT677A uses the AC 4-terminal test method to measure the internal resistance of the battery, which can measure the correct measurement value without being affected by the contact resistance between the test lead, the terminal, and the battery electrode.
• The whole machine is high-grade and beautiful, with a wide range, high resolution, convenient operation, convenient carrying, accurate, reliable, stable performance, and strong anti-interference ability.
• It is an indispensable instrument for battery production, battery installation, equipment production, equipment maintenance, and other scenarios.
