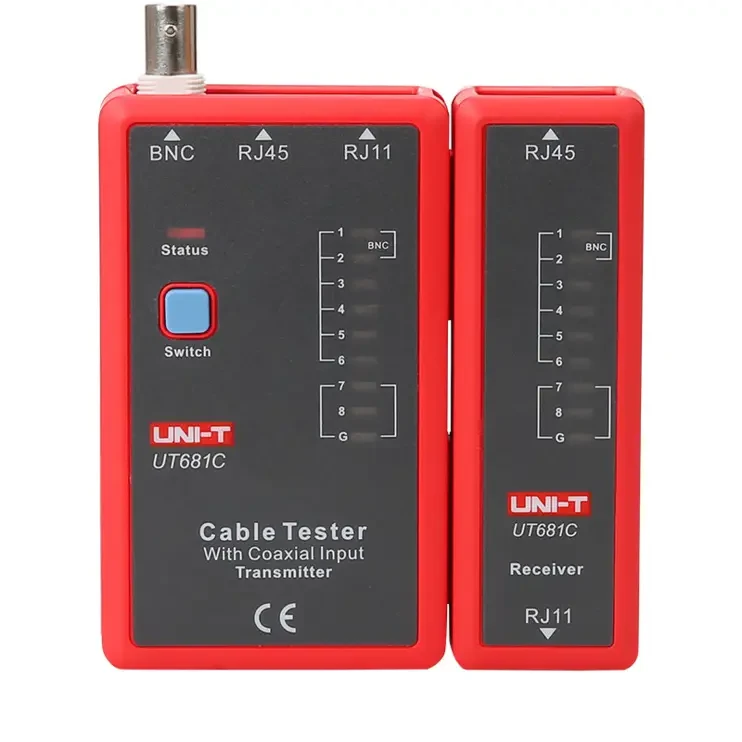

Cable Testers, UT681C, Cable Tester LAN wiring, LED, RJ11, RJ45
SKU: UT681C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT681C Cable Tester is a portable and simple cable testing tool for network and telephone technicians.
It has both quick and slow test modes and employs LED status indicators to illustrate the wiring process.
The tester can quickly discover typical cable defects such as open circuits, short circuits, and crossover connections, making it ideal for installing, maintaining, and troubleshooting low-voltage communication systems.
The UT681C also features a BNC-to-RJ45 adaptor for testing BNC cables.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Tests RJ45, RJ11 and BNC cables.
LED status display for wire sequence.
Fast and slow test modes.
Automatically checks for:
Open circuits.
Short circuits.
Crossover/mis wired connections.
Tests shielded and unshielded Ethernet cables.
Single-button operation.
Manual and automatic power-off.
Automatic power-off after approximately 10 minutes of inactivity.
Low-battery indication.
Powered by a 9 V battery.
Includes BNC-to-RJ45 adapter.
Compact handheld design.
Suitable for network cable installation, maintenance and troubleshooting.
Specifications:
Product Type: LAN / Telephone Cable Tester.
Test Interfaces: RJ45 / RJ11 / BNC.
RJ45 Cable Testing: Yes.
RJ11 Cable Testing: Yes.
BNC Cable Testing: Yes, using RJ45-to-BNC adapter.
Fast Test Mode: Yes.
Slow Test Mode: Yes.
Open Circuit Detection: Yes.
Short Circuit Detection: Yes.
Crossover Detection: Yes.
Shielded Ethernet Cable Testing: Yes.
Unshielded Ethernet Cable Testing: Yes.
Wire Sequence Display: LED1–LED8, LED_G.
Display Type: LED indicators.
Operation: Single-button operation.
Manual Power-Off: Yes.
Automatic Power-Off: Yes, after 10 minutes without operation.
Low Battery Detection: Yes.
Power Supply: 9 V battery.
Operating Temperature: 0°C–40°C.
Storage Temperature: -10°C–50°C.
Operating Humidity: 20%–80% RH.
Storage Humidity: 10%–90% RH.
Maximum Operating Altitude: ≤2,000 m.
