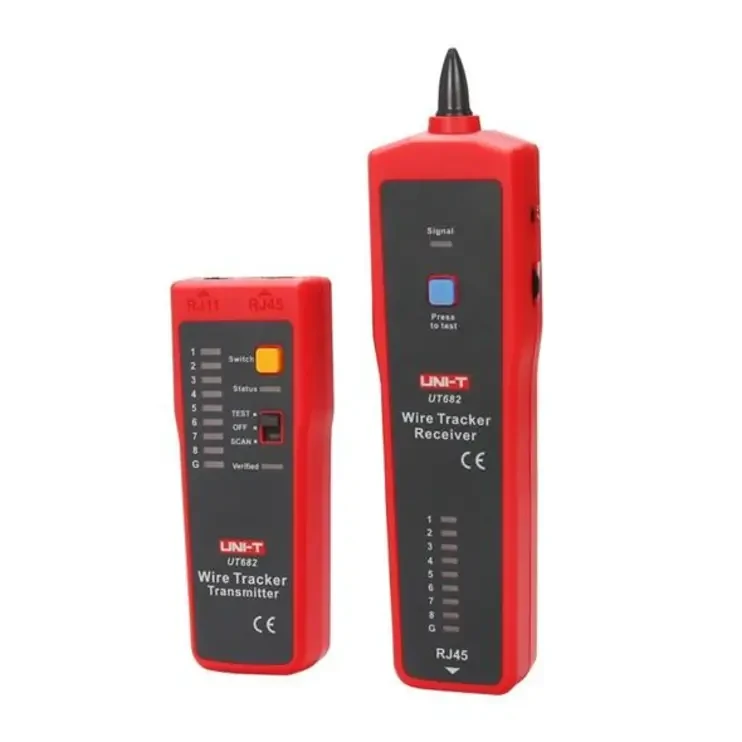

Cable Trackers, UT682, Communication Cables Ethernet Handheld Cable Tracer Network Wire Tracker
SKU: UT682
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT682 Cable Tracker is a handheld wire tracing and cable testing tool that can swiftly identify and trace Ethernet, telephone, coaxial, and electrical wires without destroying their insulation.
It includes cable tracing, Ethernet wire sequence testing, open- and short-circuit detection, DC voltage and polarity testing, and telephone/LAN cable identification.
With configurable signal strength and receiver loudness, rapid and slow test modes, and a headphone connection for noisy locations, the UT682 is ideal for cable installation, communication network maintenance, electrical troubleshooting, and defect discovery.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Tracks telephone, Ethernet and power cables.
Tracks LAN cables, telephone lines, coaxial cables and electrical wires.
Traces cables without opening or damaging their insulation.
Checks Ethernet cable wiring sequence.
Performs fast open-circuit and short-circuit testing.
Provides DC level testing to check voltage level and polarity.
Distinguishes telephone lines from LAN cables.
Detects shielded and unshielded Ethernet cables.
Tracks broken wires.
Provides signal strength indication.
Supports fast and slow line-sequence testing.
Adjustable receiver volume.
Headset connection for use in noisy environments.
Supports dual measurement cycle modes.
Provides low-battery indication.
Powered by 9 V batteries.
Suitable for communication cable debugging, installation, maintenance and troubleshooting.
Specifications:
Product Type: Wire Tracker / Tone and Probe.
Wire Types: LAN cable / Telephone line / Coaxial cable / Electric wire.
Switchboard Wire Tracing Distance: ≥100 m.
Telephone Line Tracking Distance: ≥3,000 m.
Unshielded Cable Tracking Distance: ≥320 m.
Shielded Cable Tracking Distance: ≥320 m.
Open and Short-Circuit Test: Yes.
Broken Wire Tracking: Yes.
Telephone Line Polarity Indication: Yes.
DC Voltage Test Range: ± (5 V–52 V).
Telephone Line and LAN Cable Distinction: Yes.
Ethernet Cable Shielded/Unshielded Indication: Yes.
Wire Sequence Display: LED1–LED8, LED_G.
Line Sequence Test Speed: Fast / Slow selectable.
Transmitter Output Voltage: ≥12 V peak-to-peak.
Transmitter Low-Battery Indication: 6.6 V ±0.5 V.
Transmitter Power Supply: 9 V battery.
Maximum Transmitter Working Current: 25 mA.
Transmitter Input Voltage Protection: 52 V DC.
Receiver Power Supply: 9 V battery.
Maximum Receiver Standby Current: Approximately 10 mA.
Maximum Receiver Operating Current: <40 mA AC RMS.
Headphone Jack: Yes.
Volume Adjustment: Yes.
Operating Temperature: 0°C–40°C.
Storage Temperature: -10°C–50°C.
Operating Humidity: 20%–75% RH.
Storage Humidity: 10%–90% RH.
Maximum Operating Altitude: ≤2,000 m.
Transmitter Weight: 125 g.
Receiver Weight: 153 g.
Transmitter Dimensions: 125 × 48 × 28 mm.
Receiver Dimensions: 195 × 48 × 30 mm.
Power Supply: 2 × 9 V batteries.
