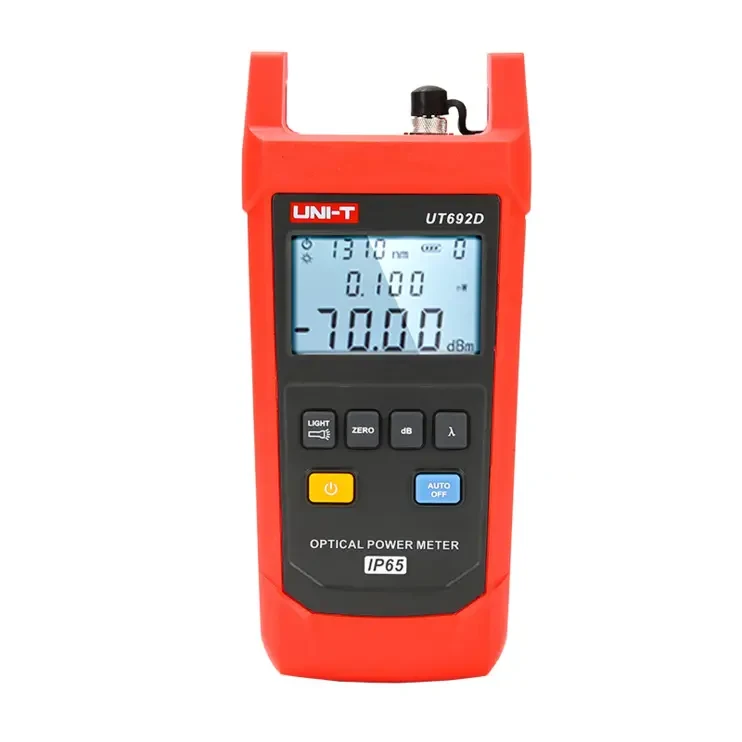

Fibre Optic Testers, UT692D, Handheld Optical Power Meter Measure Absolute Optical Power
SKU: UT692D
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Optical Power Meter for Checking Cable Construction and Maintenance,
• Wave Length Range 800nm~1700nm,
• Calibrated Wavelength 850nm-980nm-1300nm-1310nm-1490nm-1550nm-1625nm-1650nm,
• Measurement Range -70~10dBm,
• Connector FC (Optional SC/ST),
• Visual Fault Locator Wavelength 650nm,
• Detector Type InGaAs,
• Connector 2.5mm Universal Connector,
• Low Battery,
• APO,
• IP65,
• 2m Drop Test,
• Flashlight
Buy currently uses Select Automation shop pricing and checkout.
UT692 Series Optical Power Meters
• The UT692 series handheld optical power meters are used to measure absolute optical power or relative loss of optical power through length of fiber optic wires.
• UT692 series are designed to be durable, the meters can withstand 2m drop and have a dust/water resistance rating of IP65.
• In addition, UT692’s other features include backlight display, flashlight, auto power off, wavelength storage/recall, user calibration, and ultra-wide optical power test range.
• Models in UT692 Series: UT692D, UT692G
