Fibre Optic Testers, UT693D, Optical Multimeter IP65 Cable Construction and Maintenance
SKU: UT693D
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Optical Power Meter for Checking Cable Construction and Maintenance,
• Wave Length Range 800nm~1700nm,
• Calibrated Wavelength 850nm-980nm-1300nm-1310nm-1490nm-1550nm-1625nm-1650nm,
• Measurment Range -70~10dBm,
• Connector FC (Optional SC/ST),
• Visual Fault Locator Wavelength 650nm,
• Detector Type InGaAs,
• Power 10mW +-8~10km,
• Connector 2.5mm Universal Connector,
• Low Battery,
• APO,
• IP65,
• 2m Drop Test,
• Flashlight
Buy currently uses Select Automation shop pricing and checkout.

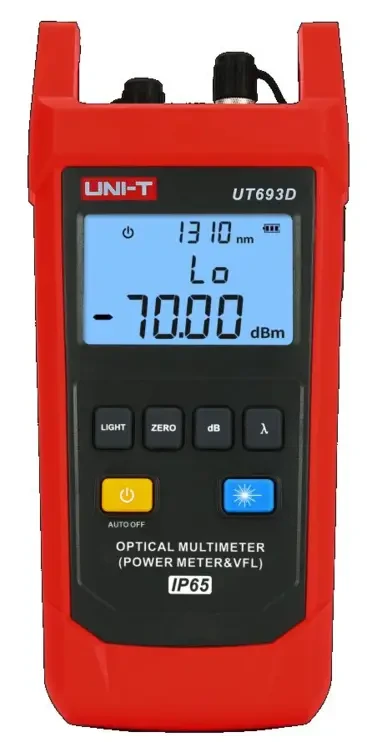

UT693D Optical Multimeter (Power Meter & VFL)
• UT693D handheld optical integrated machine is mainly used for continuous optical signal power measurement, using low-power single-chip microprocessor for control, full-featured, with 10mw red light pen.
• The product uses a built-in detector to protect it.
• In addition, it also has IP65 waterproof and dustproof, backlight display, auto power off function, wavelength memory function, user calibration function and ultra wide optical power test range.
• Widely used in fiber optic cable construction and maintenance, fiber optic communications, fiber optic sensing, optical CATV and other fields.
