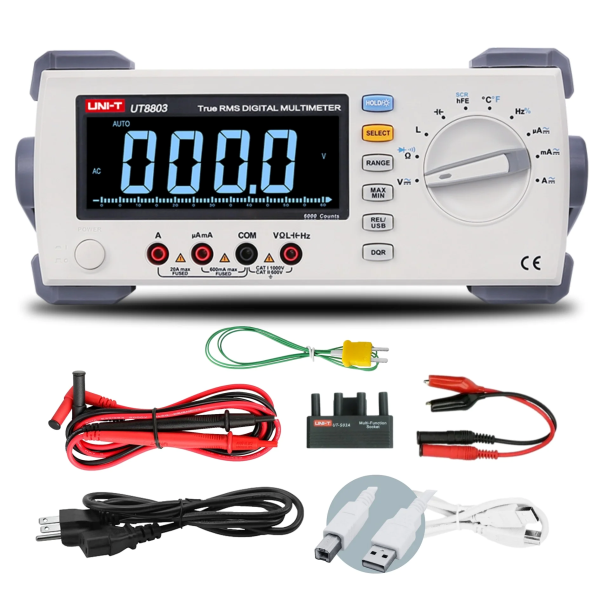

Digital Multimeter, UT8803E 3.8 Digit Classic-Series Bench Digital Multimeter
SKU: UT8803E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A 3-digit, 5999-count True RMS bench digital multi meter, the UT8803E is intended for precise and adaptable electrical and electronic testing.
It has several measuring functions, such as AC/DC voltage and current, resistance, capacitance, inductance, frequency, temperature, diode, LED, thyristor (SCR), and continuity testing, in addition to automated ranging and a big backlit display.
Additionally, the UT8803E has an analogue bar graph, USB device interface, extreme value and reference value features, and D/Q parameter measurement for capacitance and inductance.
It is appropriate for use in labs, electronics testing, engineering, manufacturing settings, maintenance, and research due to its portable desktop design and full-range overload protection.
Buy currently uses Select Automation shop pricing and checkout.
Features:
3⅚-digit, 5999-count high-resolution display.
True RMS measurement.
Automatic ranging function.
Measures AC voltage.
Measures DC voltage.
Measures AC current.
Measures DC current.
Measures resistance.
Measures capacitance.
Measures inductance up to 100 H.
Measures frequency.
Measures duty cycle.
Measures temperature using a thermocouple.
D/Q parameter measurement for capacitance and inductance.
Diode and LED testing function.
Thyristor (SCR) testing function.
Continuity testing with audible buzzer.
Extreme value (MAX/MIN) measurement function.
Reference value (REL) measurement function.
Analogue bar graph display.
Large LCD display with backlight.
Full-range overload protection.
USB Device connectivity for PC communication.
Fastest test rate of 3 readings per second.
Frequency response up to 100 kHz.
Compact portable desktop design.
Suitable for laboratory measurement and testing.
Suitable for electronics research and development.
Suitable for production line testing and quality control.
Suitable for electrical maintenance and troubleshooting.
Suitable for component testing and electronic circuit analysis.
Specifications:
Meter Type: Bench Digital Multi meter.
Display Resolution: 3⅚ digits.
Maximum Display Count: 5999.
Measurement Type: True RMS.
Ranging: Automatic.
Fastest Test Rate: 3 readings/s.
Frequency Response: 100 kHz.
DC Voltage Accuracy: 0.3% basic accuracy.
DC Voltage: Up to 1000 V.
AC Voltage: Up to 750 V.
DC Current: Up to 10 A.
AC Current: Up to 10 A.
Resistance: Up to 60 MΩ.
Capacitance: Up to 6 mF.
Inductance: Up to 100 H.
Frequency: 600 Hz–20 MHz
Duty Cycle: 5%–95%.
Temperature: -40°C to 1000°C / -40°F to 1832°F.
Connectivity: USB Device.
Display: EBTN LCD with backlight.
Input Impedance: 3 GΩ on 600 mV DCV range; 10 MΩ on other voltage ranges.
Power Supply: 100 V / 120 V / 220 V / 240 V ±10%, 47 Hz–63 Hz AC.
Maximum Input Voltage: 1000 V DC / 750 V AC.
Data Hold: Yes.
MAX/MIN: Yes.
Continuity Test: Yes.
Diode Test: Yes.
SCR Test: Yes.
AC + DC Measurement: Yes.
Product Dimensions: 320 × 265 × 110 mm.
Operating Temperature: 0°C–40°C.
Storage Temperature: -10°C–50°C.
