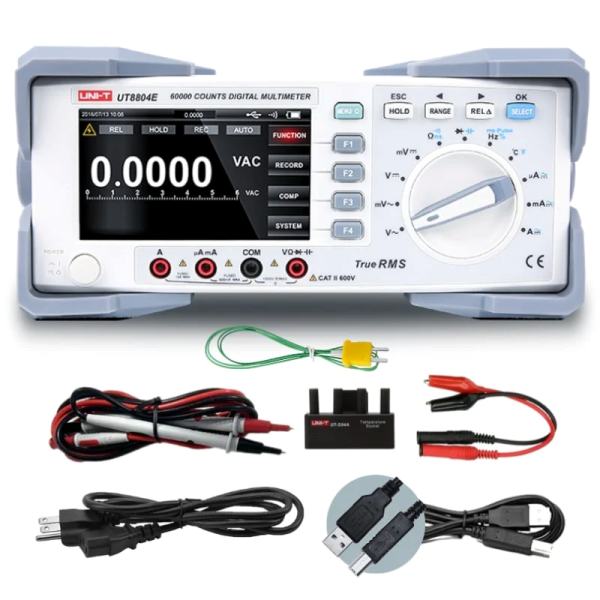

Digital Multimeter, UT8804E 4.8 Digit Advanced-Series Bench Digital Multimeter
SKU: UT8804E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A 59,999-count, 4-digit Advanced-Series bench digital multi meter, the UT8804E is intended for high-precision electrical and electronic measurement.
It has a 4.3-inch full-colour TFT LCD display, 100 kHz frequency response, automatic and manual range, True RMS measurement, and a DC voltage accuracy of 0.025% over a year.
Numerous measurement operations, including maximum/minimum and reference value functions, recording with statistics and trend chart display, multiple measurement parameters, data storage, and USB device interface, are supported by the UT8804E.
It can be used for professional electrical diagnostics, electronics measurement, production testing, research and development, and laboratory testing.
Buy currently uses Select Automation shop pricing and checkout.
Features:
4⅚-digit high-resolution measurement.
59,999-count display.
True RMS measurement.
Automatic and manual ranging functions.
Measures DC voltage up to 1000 V.
Measures AC voltage up to 1000 V.
Measures DC current up to 10 A.
Measures AC current up to 10 A.
Measures resistance.
Measures capacitance up to 60 mF.
Measures conductance up to 60 nS.
Measures frequency up to 60 MHz
Measures duty cycle from 10% to 90%.
Measures temperature from -40°C to 1000°C.
AC + DC voltage measurement function.
Diode testing function.
Transistor testing function.
Continuity testing with audible buzzer.
Maximum and minimum value measurement function.
Reference value (REL) measurement function.
Recording function with statistical data and trend charts.
Multiple measurement parameters can be displayed simultaneously.
4.3-inch full-colour TFT LCD display.
Analogue bar graph for intuitive measurement indication.
Data storage for up to 20,000 measurement groups.
Data hold function.
USB Device connectivity.
100 kHz frequency response.
High-precision DC voltage measurement with 0.025% accuracy over one year.
Full-range overload protection.
Suitable for laboratory measurement and testing.
Suitable for electronics research and development.
Suitable for production line testing and quality control.
Suitable for electrical maintenance and troubleshooting.
Suitable for professional component and circuit testing.
Specifications:
Meter Type: Bench Digital Multi meter.
Display Resolution: 4⅚ digits.
Maximum Display Count: 59,999.
Measurement Type: True RMS.
Ranging: Auto / Manual.
DC Voltage: Up to 1000 V.
DC Voltage Accuracy: ± (0.025% + 5).
AC Voltage: Up to 1000 V.
AC Voltage Frequency Response: 45 Hz–100 kHz.
DC Current: Up to 10 A.
DC Current Accuracy: ± (0.08% + 10).
AC Current: Up to 10 A.
AC Current Frequency Response: 45 Hz–10 kHz.
Capacitance: Up to 60 mF.
Capacitance Accuracy: ± (0.05% + 2).
Conductance: Up to 60 nS.
Conductance Accuracy: ± (2% + 10).
Frequency: Up to 60 MHz
Frequency Accuracy: ± (0.01% + 5).
Duty Cycle: 10%–90%, 10 Hz–2 kHz.
Duty Cycle Accuracy: ± (1.2% + 30).
Temperature: -40°C to 1000°C / -40°F to 1832°F.
Temperature Accuracy: ± (1% + 30) / ± (1.5% + 50).
Frequency Response: 100 kHz.
Sampling Speed: 2–3 readings/s.
Data Storage: Up to 20,000 measurement groups.
Display: 4.3-inch TFT LCD.
Analogue Bar Graph: Yes.
True RMS: Yes.
Data Hold: Yes.
MAX/MIN: Yes.
REL: Yes.
Diode/Transistor Test: Yes.
Continuity Test: Yes.
Connectivity: USB Device.
Input Impedance: 10 MΩ.
Overload Protection: 1000 V.
Power Supply: 100 V / 120 V / 220 V / 240 V ±10%, 47 Hz–63 Hz.
