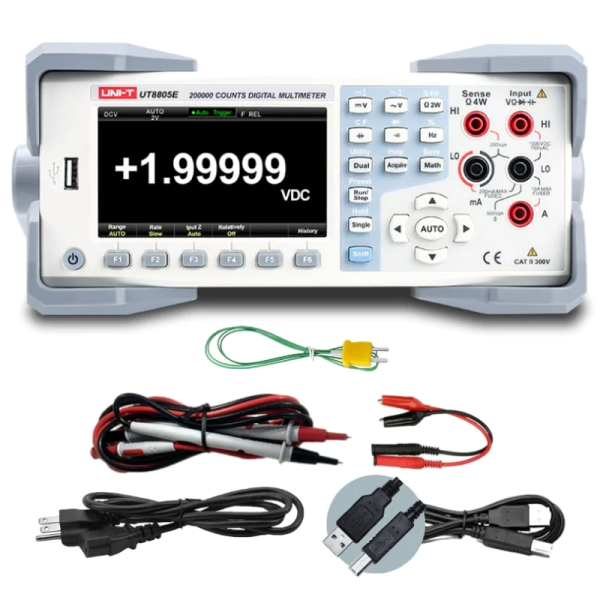

Digital Multimeter, UT8805E 5.5 Digit Performance-Series Bench Digital Multimeter
SKU: UT8805E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A high-performance 5½-digit True RMS bench digital multi meter, the UT8805E is made for precise electrical and electronic measurements.
It has a 4.3-inch TFT LCD display, a 100 kHz frequency response, a 199,999-count display, and measurement speeds of up to 5,000 readings per second.
The UT8805E can measure resistance using two or four wires, as well as AC/DC voltage and current, capacitance, frequency, temperature, continuity, and diode testing.
Data can be saved locally or on a USB device, and advanced mathematical operations include maximum, minimum, average, standard deviation, relative measurement, dB, dBm, and pass/fail testing.
Research and development, electronics, communications, manufacturing, calibration, automated testing, education, and professional laboratory applications can all benefit from the UT8805E's USB Host, USB Device, LAN, and RS-232 interface.
Buy currently uses Select Automation shop pricing and checkout.
Features:
5½-digit high-resolution measurement.
199,999-count display resolution.
True RMS AC measurement.
Automatic ranging function.
Measurement speeds of 2.5, 10 and 5,000 readings per second.
100 kHz frequency response.
High-precision DC voltage measurement with 0.015% one-year accuracy.
Measures DC voltage up to 1000 V.
Measures AC voltage up to 750 V RMS.
Measures DC current up to 10 A.
Measures AC current up to 10 A RMS.
Measures resistance using 2-wire and 4-wire measurement methods.
Measures capacitance.
Measures frequency.
Measures period.
Measures temperature using thermocouple and thermal resistance sensors.
Continuity testing function.
Diode testing function.
Maximum, minimum and average value measurement functions.
Standard deviation and statistical measurement functions.
Relative measurement function.
dB and dBm mathematical functions.
Pass/Fail testing function.
Histogram display.
Trend chart display.
Bar graph display.
Dual display function for simultaneous primary and secondary measurements.
Displays voltage or current together with frequency when measuring AC signals.
4.3-inch TFT LCD display.
Measurement hold function.
10,000-reading history data recording.
1 GB NAND Flash storage capacity.
USB Host connectivity for USB drive data storage and configuration.
USB Device connectivity.
LAN connectivity.
RS-232 connectivity.
PC control software support.
IEEE 488.2 standard, VXI-11 and SCPI language support.
Suitable for research and education.
Suitable for research and development.
Suitable for electronics and communications testing.
Suitable for manufacturing and production testing.
Suitable for calibration applications.
Suitable for automated testing systems.
Specifications:
Meter Type: Bench Digital Multi meter.
Display Resolution: 5½ digits.
Display Count: 199,999.
Measurement Type: True RMS.
DC Voltage Ranges: 200 mV / 2 V / 20 V / 200 V / 1000 V.
AC Voltage Ranges: 200 mV / 2 V / 20 V / 200 V / 750 V RMS.
DC Current Ranges: 200 μA / 2 mA / 20 mA / 200 mA / 2 A / 10 A.
AC Current Ranges: 2 mA / 20 mA / 200 mA / 2 A / 10 A RMS.
Resistance Ranges: 200 Ω / 2 k Ω / 20 k Ω / 200 k Ω / 2 MΩ / 10 MΩ / 100 MΩ.
Capacitance Ranges: 2 nF / 20 nF / 200 nF / 2 μF / 20 μF / 200 μF / 2 mF.
Continuity Test: Fixed 2 k Ω.
Diode Test: 0 V–4 V.
Frequency Range: 20 Hz–1 MHz
Period Range: 1 μs–0.05 s.
Temperature Measurement: Thermocouple and thermal resistance sensor supported.
DC Voltage Accuracy: 0.015% in one year.
Fastest Test Rate: 5,000 readings/s.
Frequency Response: 100 kHz.
Display: 4.3-inch TFT LCD.
Data History: Up to 10,000 readings.
Internal Storage: 1 GB NAND Flash.
Connectivity: USB Host / USB Device / LAN / RS-232.
Communication Protocols: IEEE 488.2 / VXI-11 / SCPI.
Data Storage: Local storage and USB drive support.
PC Control: Yes.
True RMS: Yes.
2-Wire Resistance: Yes.
4-Wire Resistance: Yes.
Pass/Fail Testing: Yes.
Mathematical Functions: Maximum / Minimum / Average / Standard Deviation / Relative / dB / dBm.
Display Modes: Number / Bar Graph / Trend Graph / Histogram.
Applications: Research, education, R&D, detection and maintenance, calibration and automated testing.
