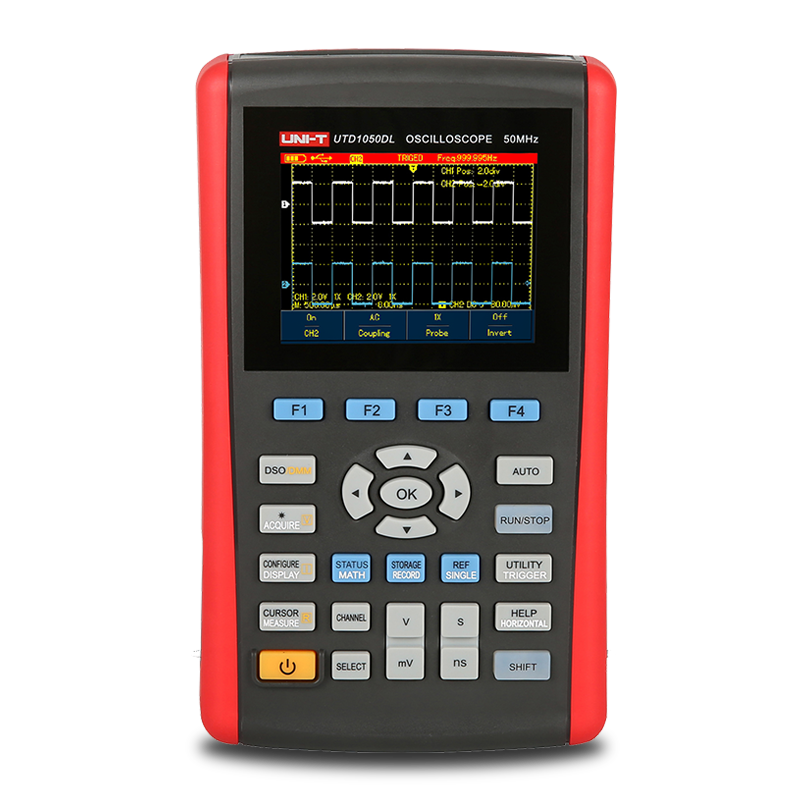

Handheld Digital Storage Oscilloscopes, UTD1050DL: 50MHz, 12Kpts, 250MS/s, 2-Channel
SKU: UTD1050DL
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
UTD1000L Series, Handheld Digital Storage Oscilloscopes:
250MSa/s and 200MSa/s real-time sample rates; 1/2 analog channels.
Speed: 25 MHz, 50 MHz
Combine the functionality of an oscilloscope, multi meter, and recorder into a single 3999 display.
For the UTD1000CL and UTD1000DL, the battery can run continuously for eight and six hours, respectively.
Auto measures come in 22 varieties.
Functions for recording, storing, and replaying waveforms.
Colour LCD with outstanding contrast and resolution.
Basic print screen feature.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UTD1000L Series, Handheld Digital Storage Oscilloscopes.
Rise time ≤7ns.
Memory depth 12kpts.
Vertical scale (V/div) 5mV/div-20V/div.
Trigger types of Edge, pulse width, video, slope.
Standard interface Mini USB.
Capacitance (F) 51.2nF/512nF/5.12μF/51.2μF/100μF.
Display count 3999.
Power Li-ion battery: 7.4V 3600mAh; DC adapter: 100V-240V, 50/60Hz input, 9V/4A output.
Display 3.5-inch TFT LCD, 320x240.
Product colour Red and grey.
Product net weight 0.9kg.
Product size (W×H×D) 199mm x 118 mm x 49mm.
