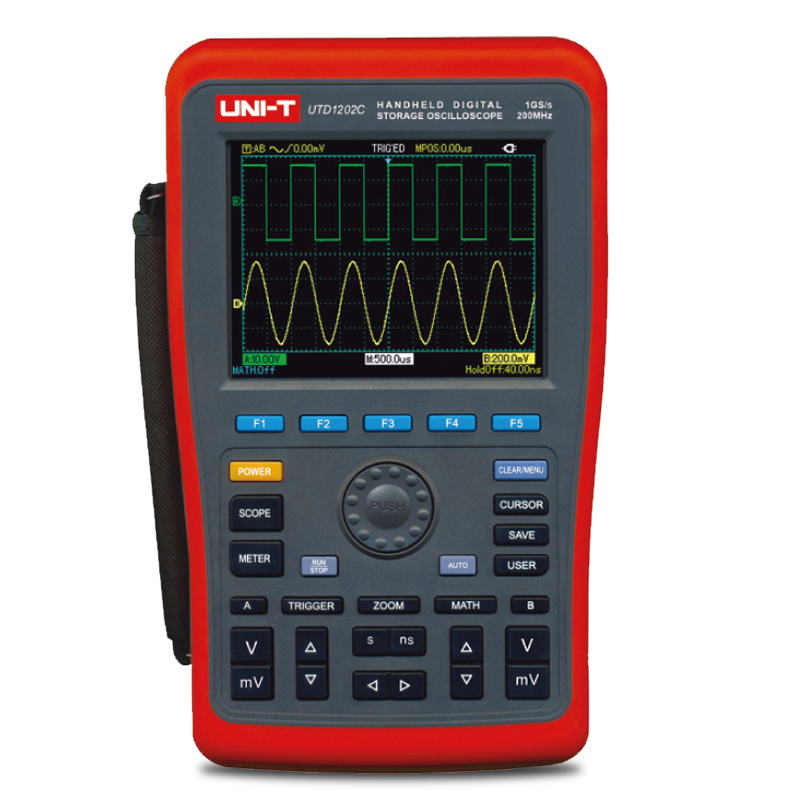

Handheld Digital Storage Oscilloscopes, UTD1202C: 200MHz, 7.5Kpts, 1GSa/s, 2-Channel
SKU: UTD1202C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
UTD1000C Series, Handheld Digital Storage Oscilloscopes:
1GSa/s, 500MSa/s, and 250MSa/s instantaneous Two analog channels; sample rate.
Broadband: 60 MHz, 100 MHz, and 200 MHz
Multi-meter functionality, with 5999 displays.
Fine window expansion, accurate waveform overview, and thorough analysis.
Twenty-seven waveform properties are automatically measured.
Special function for recording, storing, and replaying waveforms.
Menu displays in multiple languages.
5.7-inch HD colour LCD display with an aspect ratio of 320 x 240 pixels.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UTD1000C Series, Handheld Digital Storage Oscilloscopes.
Bandwidth 200MHz
Rise time ≤1.8ns.
Memory depth 7.5kpts.
Vertical scale (V/div) 5mV/div-50V/div.
Storage modes Setup, waveform, bitmap.
Trigger types of Edge, pulse width, video and alternative.
Standard interfaces USB Host.
Display count 5999.
Auto range Auto/manual (Only manual mode is available for current measurement).
Power Li-ion battery: 7.4V 4400mAh; DC adapter: 100-240V 50/60Hz input, 9V/4A output.
Display 5.7-inch TFT LCD, QVGA (320x240).
Product size (W×H×D) 268mm x 168 mm x 60mm.
