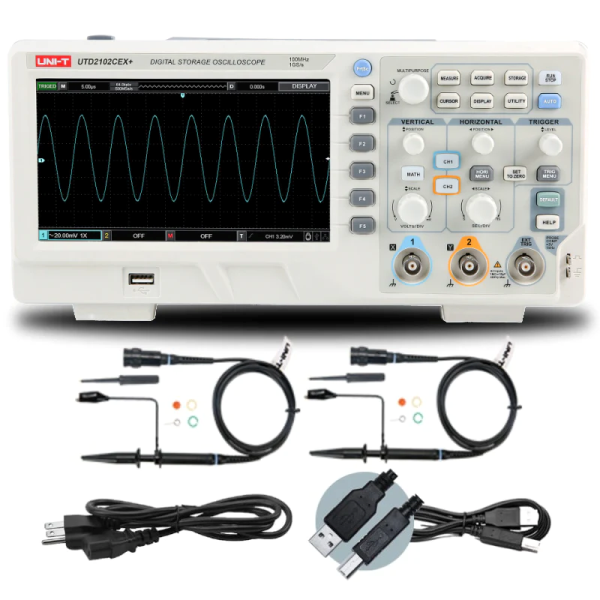

Digital Oscilloscopes, UTD2102CEX+ 100MHz 2Ch DSO
SKU: UTD2102CEX-Plus
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
UTD2000CEX+ Series, Digital Oscilloscopes:
50/100/200 MHz bandwidth.
Two channels with a low noise floor and a large vertical range of 1 mV/div to 20 V/div.
Memory depth: 64 kpts.
Upgrade the system software via USB drive.
7-inch TFT LCD.
Supports plug-and-play USB storage devices; allows for communication with and remote control of computers via USB.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UTD2000CEX+ Series, Digital Oscilloscopes.
Scope Type DSO.
Bandwidth 100MHz
Channels 2Ch.
Scope Sample Rate 1.0GSa/s.
Memory Depth 64kpts.
Refresh Rate 5,000wfms/s.
Vertical Scale @1MΩ 1V/div to 20V/div.
Automatic Measurements 34.
Included Bus Protocols None.
Optional Bus Protocols None.
Logic Pod Included Not Available.
Signal Generator Function Not Available.
Frequency Meter 6-bit.
Display Size (in) 7in.
Touchscreen No.
Warranty 3 years.
Product Dimensions (L x W x H) 12 in x 4 in x 5 in.
Product Weight 6 lb.
Certifications CE/cETLus/UKCA.
