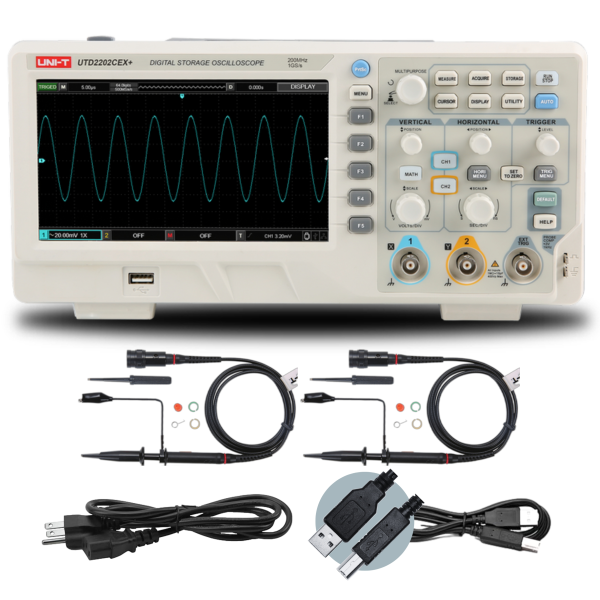

Digital Oscilloscopes, UTD2202CEX+ 200MHz 2Ch DSO
SKU: UTD2202CEX-Plus
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
UTD2000CEX+ Series, Digital Oscilloscopes:
50/100/200 MHz bandwidth.
Two channels with a low noise floor and a large vertical range of 1 mV/div to 20 V/div.
Memory depth: 64 kpts.
Upgrade the system software via USB drive.
7-inch TFT LCD.
Supports plug-and-play USB storage devices; allows for communication with and remote control of computers via USB.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UTD2000CEX+ Series, Digital Oscilloscopes.
Bandwidth 200MHz
Channels 2.
Sample rate 1GS/s.
Memory depth 64kpts.
Waveform capture rate 5, 000wfms/s.
Rise time ＜1.8ns.
Vertical scale (V/div) 1mV/div-20V/div.
Vertical resolution 8bit.
Time base scale (s/div) 2ns/div-50s/div.
Deviation from scope ±8div (away from screen centre).
Input impedance 1MΩ±2% ,18±3pF.
