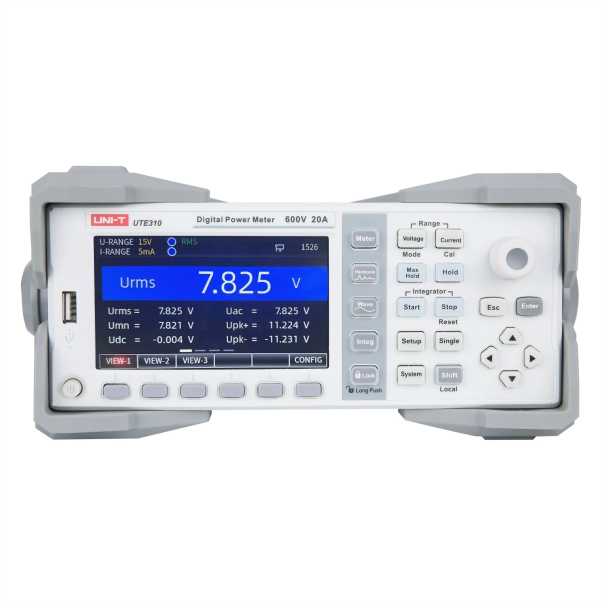

Power Meter, UTE310H 1000V High-Performance Digital Power Meter
SKU: UTE310H
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
UTE300 Series, Power Meter:
The 4.3" TFT-LCD display has a resolution of 480*272.
The measuring range for voltage and current RMS is 25 uA-50 A / 75 mV-1000 V.
Voltage and current maximum resolution: 1 mV/0.1 uA.
The basic precision for voltage, current, and power is 0.1%.
Maximum power resolution: 0.001 MW.
Numerous connectivity interfaces include USB, RS-232 or GPIB (optional), and LAN.
The measurement bandwidth is 0.1 Hz–300 kHz.
Sample rate: 1 MHz
Supports both Modbus and SCPI communication protocols.
Voltage and current waveforms, a harmonic graph, a D/A output for recording measurements, a comparator function, a current sensor input, and USB data storage.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UTE300 Series, Power Meter.
Max V Resolution 1Mv.
Max A Resolution 0.01mA.
AC/DC Current Range 10mA–50A.
AC/DC Voltage Range 75mV–1000V.
Harmonic Measurement 1–50th.
Measuring Bandwidth 0.1Hz–300kHz.
Watts Range 15W–50000W.
Max A Resolution 0.01mA.
Display Size (in) 4.3in.
Warranty 3 years.
Product Dimensions (L x W x H) 13 in x 5 in x 11 in.
Product Weight 7 lb.
Certifications CE.
