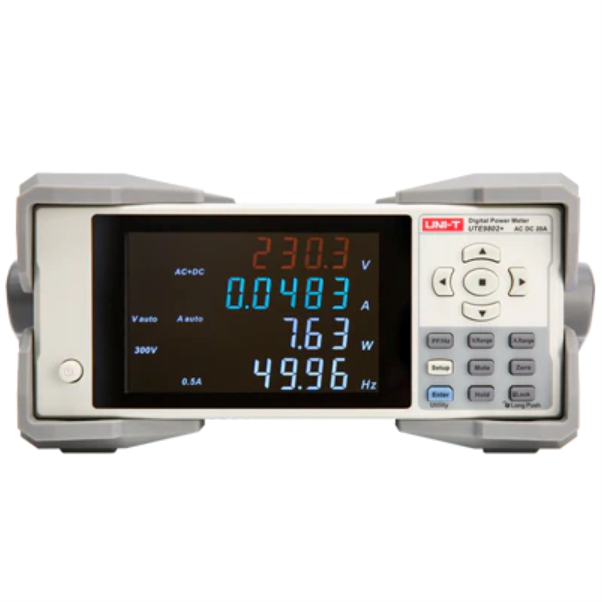

Power Meter, UTE9802+ Power Meter – 600V/20A, True RMS, AC/DC/AC+DC Measurement
SKU: UTE9802-Plus
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
UTE9800+ Series, Power Meter:
Four windows are displayed concurrently.
Adjust the data refresh rate to optimize test efficiency.
Accuracy for voltage, current, and power is ± (0.4% reading + 0.1 range + 1 digit).
The maximal harmonic analysis on the UTE9811+ is 50 times.
UTE9802+ is a genuine RMS measurement.
Support the average function; the reading is more stable.
The RS-232/RS-485 serial communication interface can communicate with a computer or a PLC.
Support both the SCPI and Modbus communication protocols.
The top and lower alarm parameters for current and power can be adjusted freely. It contains both audible and visible alarms and the ability to create a delay alarm.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UTE9800+ Series, Power Meter.
Max V Resolution 1mV.
Max A Resolution 0.1μA.
AC/DC Current Range 0.5mA - 24A.
AC/DC Voltage Range 3.0V - 700V.
Harmonic Measurement NA.
Measuring Bandwidth DC, 45Hz - 400Hz.
Watts Range 1W - 12kW.
Max A Resolution 0.1μA.
Display Size (in) 4.3in.
Warranty 3 years.
Product Dimensions (L x W x H) 13 in x 13.5 in x 3.5 in.
Product Weight 8.5 lb.
Certifications CE.
