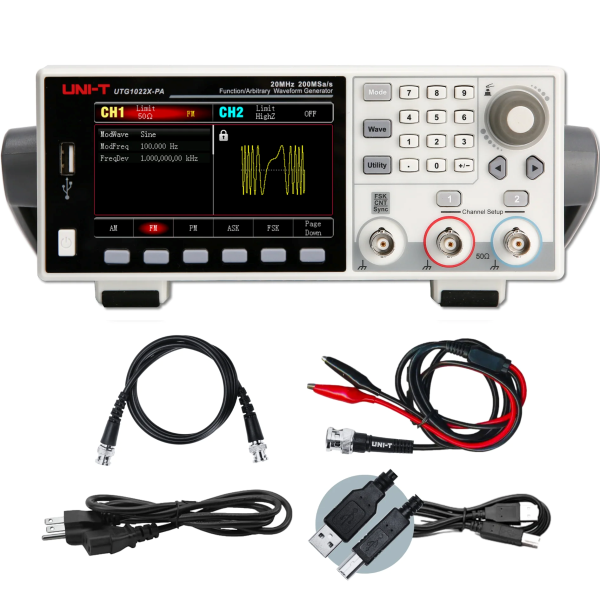

Waveform and Function Generators, UTG1022X-PA 20MHz 2Ch
SKU: UTG1022X-PA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
UTG1000X Series, Waveform and Function Generators:
Dual-channel comparable performance Maximum output frequency: 40 MHz; maximum output amplitude: 20 Vpp.
200 MSa/s sampling rate, 16-bit vertical resolution.
The maximum frequency of a square wave is 10 MHz, with low jitter.
AM, FM, PM, FSK, ASK, PSK, and PWM are among the many analog and digital modulation options.
Standard USB host/device interface.
Support the sweep frequency and pulse train output.
The built-in power amplifier module has a maximum output power of 4W (-PA only).
PC software may generate arbitrary waveforms.
The 7-bit hardware frequency counter function produces lower output noise and has a greater signal-to-noise ratio.
Includes 200 arbitrary waveforms.
4.3-inch TFT LCD display.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UTG1000X Series, Waveform and Function Generators.
Channels 2Ch.
Memory Depth 4kpts.
Frequency 20MHz
Square/Pulse (Hz) 10MHz
Vertical Resolution 16 Bits.
Waveforms Sine Square Ramp Pulse Noise DC Arbitrary.
Built-in Arbs 200.
Modulation Types AM FM FSK PM ASK PSK PWM.
Sweep Modes Linear Logarithmic.
Frequency Counter 100mHz - 200MHz
Display Size (in) 4.3in.
Touchscreen No.
Warranty 3 years.
Product Dimensions (L x W x H) 9 in x 12 in x 4 in.
Product Weight 5 lb.
Certifications CE/cETLus/UKCA.
