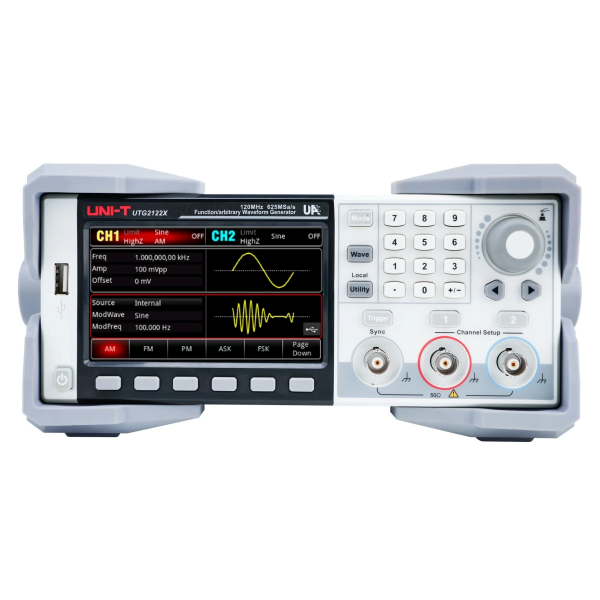

Waveform and Function Generators, UTG2062X 60MHz 2Ch

Pricing available on request UTG2000X Series, Waveform and Function Generators: The dual channel has a maximum frequency output of 120 MHz and an amplitude of 20 Vpp. It also has a sample rate of 625 MSa/s and a vertical resolution of 16 bits. There are eleven primary waveforms: sine, square, pulse, ramp, arbitrary, harmonic, expression, PRBS, noise, DC, and double pulse. AM, PM, FM, D SB-AM, A SK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, QAM, OSK, PWM, and SUM are all analog and digital modulation functions. Square wave, maximum frequency 50 MHz, low jitter. Wide dynamic and high-precision pulse wave with changeable edge time, allowing for delicate edge time adjustment while maintaining extremely high adjustment resolution and range. Excellent performance and low harmonic distortion. It supports frequency sweep and burst output. Low jitter waveforms can be outputted point-by-point throughout an arbitrary waveform length range of 8 pts to 64 Mpt. Channels can be copied, followed, and stacked. Can create any waveform using any waveform editor on the higher computer. 7-bit hard frequency meter. Built-in 200 arbitrary waves. Standard USB host, USB device, and LAN interfaces. Support SCPI-programmable instrument standard commands. 4.3-inch high-resolution TFT LCD.
