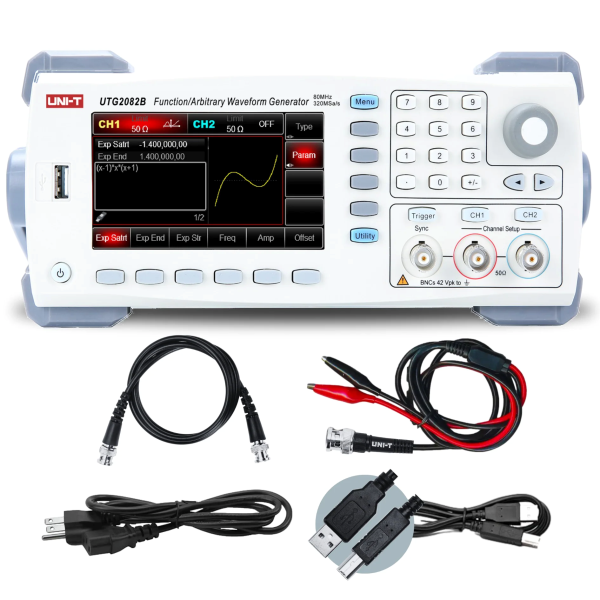

Waveform and Function Generators, UTG2082B 80MHz 2Ch
SKU: UTG2082B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
UTG2000A/B Series, Waveform and Function Generators:
60 MHz/80 MHz/120 MHz sine waveform output with 1 μHz full-band resolution.
1.28 GSa/s sampling rate, 16 bits vertical resolution.
Function for outputting expressions that are unique.
Standard two channels with standalone and channel-coupling output modes.
Arbitrary waveform depth of 16 Mpts.
Variable modulation possibilities include AM, FM, PM, PWM, ASK, FSK, PSK, BPSK, QPSK, OSK, DSB-AM, SUM, and QAM.
4.3-inch TFT LCD with WVGA resolution (800×480).
Standard ports include USB Host, USB Device, and LAN.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UTG2000A/B Series, Waveform and Function Generators.
Channels 2Ch.
Memory Depth 16Mpts.
Frequency 80MHz
Square/Pulse (Hz) 25MHz
Vertical Resolution 16 Bits.
Waveforms Sine Square Ramp Pulse Harmonic Noise DC Arbitrary Expression.
Built-in Arbs 160.
Modulation Types AM FM FSK PM QAM ASK PSK BPSK QPSK OSK PWM SUM DSB-AM.
Sweep Modes Linear Logarithmic.
Frequency Counter 100mHz - 200MHz
Display Size (in) 4.3in.
Touchscreen No.
Warranty 3 years.
Product Dimensions (L x W x H) 12 in x 4 in x 9 in.
Product Weight 7 lb.
Certifications CE/cETLus/UKCA.
