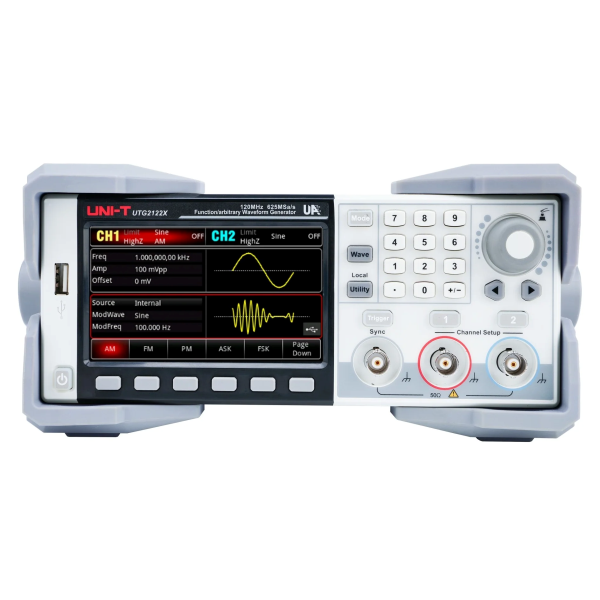

Waveform and Function Generators, UTG2122X 120MHz 2Ch Advanced-Series Arbitrary Waveform Generator

  Pricing available on request UTG2000X Series, Waveform and Function Generators: Dual channel with a maximum frequency output of 120 MHz, a maximum output amplitude of 20 Vpp, a sample rate of 625 MSa/s, and a 64-bit vertical resolution. There are eleven primary waveforms: sine, square, pulse, ramp, arbitrary, harmonic, expression, PRBS, noise, DC, and double pulse. AM, PM, FM, D SB-AM, A SK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, QAM, OSK, PWM, and SUM are all analog and digital modulation functions. Square wave, maximum frequency 50 MHz, low jitter. Wide dynamic and high-precision pulse wave with changeable edge time, allowing for delicate edge time adjustment while maintaining extremely high adjustment resolution and range. Excellent performance and low harmonic distortion. It supports frequency sweep and burst output. Low jitter waveforms can be outputted point-by-point throughout an arbitrary waveform length range of 8 pts to 64 Mpt. Channels can be copied, followed, and stacked. Can create any waveform using any waveform editor on the higher computer. 7-bit hard frequency meter. Built-in 200 arbitrary waves. Standard USB host, USB device, and LAN interfaces. Support SCPI-programmable instrument standard commands. 4.3-inch high-resolution TFT LCD.
