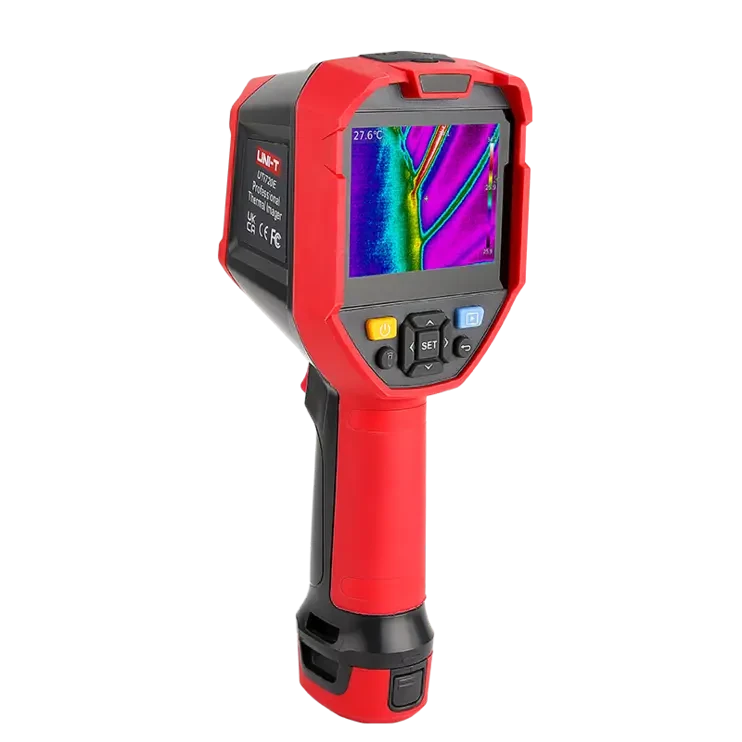

Thermal Imagers, UTI720E, Industrial Professional Infrared Thermal Imager 256x192/320x240 Camera Industrial PCB Circuit Electronic Repair Floor H
SKU: UTI720E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Enhanced Thermal Imager 256x192 Pixel Resolution,
• Temperature -20~550°C,
• Focus Free,
• 2m Drop,
• Screen 3.5" IPS with 640x480 pixels,
• FOV 56°x42°,
• Thermal Sensitivity NETD 50mK,
• Frame Rate 25Hz,
• IFOV 3.8mrad,
• 7 Palettes,
• Image Mode Thermal + Visual + Fusion + PIP,
• Isotherm Auto/Ration/Below/Above/Section/Manual,
• Auto Alarm for High/Low Temperature,
• Auto Tracking for Hot Spot/Cold Spot,
• On Screen Analyzer: 5 Point/Line 1/Rectangle 3/Circle 3,
• Image Capture,
• Digital Camera Resolution 2MP,
• Digital Zoom 2x and 4x,
• LED Flashlight,
• Wi-Fi Connection Through Mobile App,
• QR Code Photo Management,
• PC Software Analysis,
• 1/4" Tripod Mount,
• IP54,
• 5200mAh Detachable Battery Pack
Buy currently uses Select Automation shop pricing and checkout.
UTi720E Enhanced Thermal Camera
• UTi720E is an advanced thermal camera with Wi-Fi capability.
• Its large 3.5” IPS display screen can clearly display 256×192 thermal resolution 2MP visual camera, or a blended image of both.
• It can measure temperature from -20℃ to 550℃.
• UTi720E’s 5200mAh detachable battery pack is convenient for easy and quick battery change, allowing continuously work for long periods of time.
