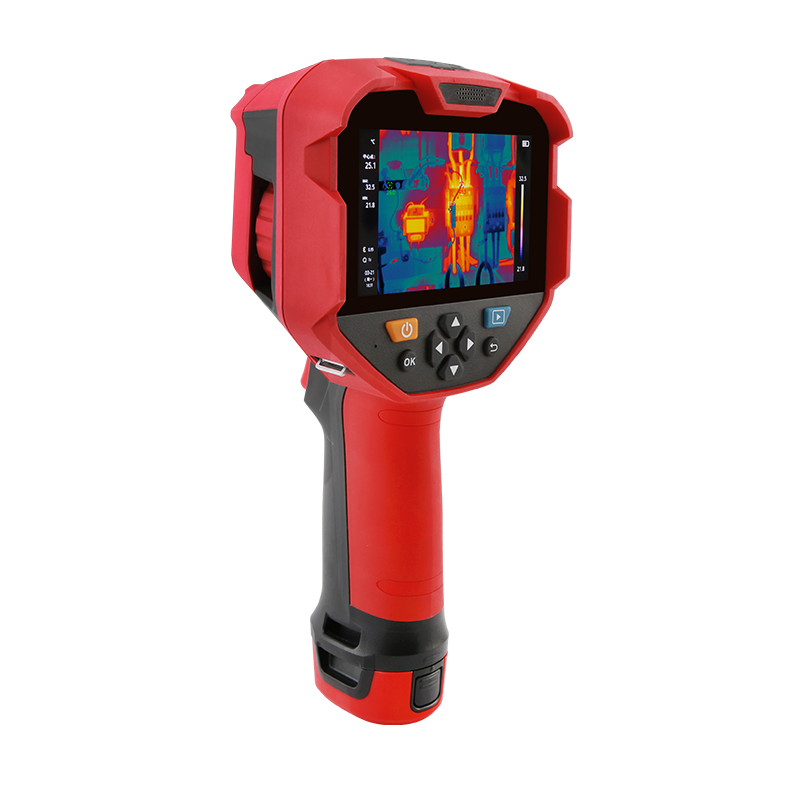

Thermal Imagers, UTI740H, Professional Enhanced Thermal Camera
SKU: UTI740H
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Enhanced Thermal Imager 384x288 Pixel Resolution,
• Temperature -30~650°C,
• Manual Focus,
• 2m Drop,
• Screen 4.3" IPS with 800x480 pixels,
• FOV 28°x21°,
• Thermal Sensitivity NETD 60mK,
• Frame Rate 25Hz,
• IFOV 1.3mrad,
• 7 Palettes (White Hot, Black Hot, Ironbow, HC Rainbow, Rainbow, Lava),
• Image Mode Thermal + Visual + Fusion + PIP,
• Isotherm 2 (Auto/Manual),
• Auto Alarm for High/Low Temperature,
• Auto Tracking for Hot Spot/Cold Spot,
• On Screen Analyser: 5 Point/Line 1/Rectangle 3/Circle 3,
• Image Capture,
• Digital Camera Resolution 5MP,
• Digital Zoom 2x and 4x,
• LED Flashlight,
• Wi-Fi Connection Through Mobile App,
• QR Code Photo Management,
• PC Software Analysis,
• 1/4" Tripod Mount,
• 2m Drop Proof,
• IP54,
• 5200mAh Replaceable Battery Pack
Buy currently uses Select Automation shop pricing and checkout.
UTi740H Professional Enhanced Thermal Camera
• UTi740H is a professional enhanced thermal camera that specially designed for industrial use with wide temperature range:-30℃~650℃.
• Its large 4.3 ” IPS display screen can clearly display 384×288 IR resolution and 5MP digital camera.
• The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image.
• UTi740H thermal camera is also with other features: such as WiFi capability, Isotherm, on screen analyzer,etc.
• It is a perfect troubleshooting tools for many industrial applications.
