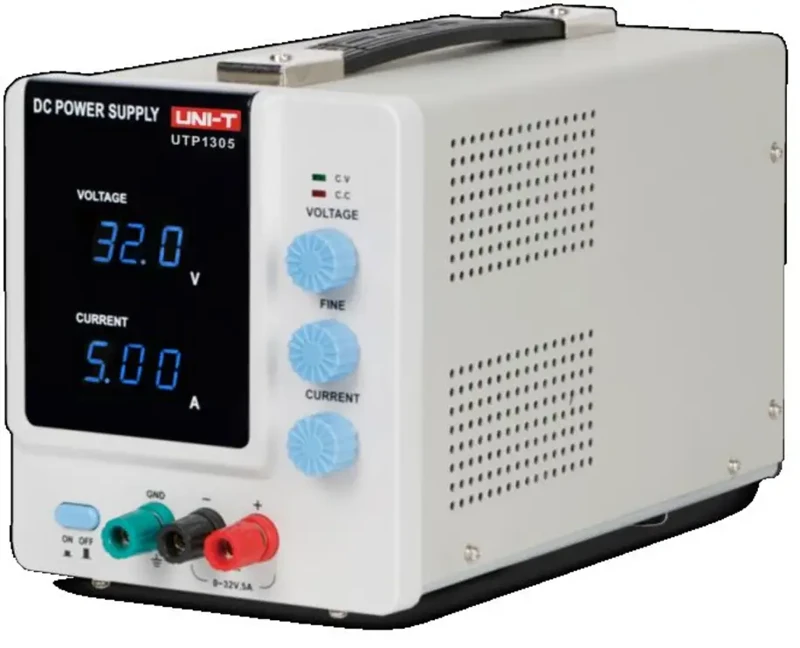

Function Generator, UTP1305, DC Power Adjustable DC Power Supply 5A Notebook Mobile Phone Repair

Specifications • DC Power Adjustable DC Power Supply 5A Notebook Mobile Phone Repair • Output voltage 0~32V • Output current 0~5A • Load regulation CV≤1x10-4 +3mV, CC≤2x10-4 +3mA • Ripple and noise ≤1mVrms • Output regulation resolution CV: 100mV (typical), CC: 10mA (typical) • Reliability MTBF(e): ≥2000hrs • Display mode LED voltage and current dual display • Feature Auto conversion of constant voltage and current with current limit protection • Power Input voltage: 115V AC/230V AC; frequency: 47Hz~63Hz
