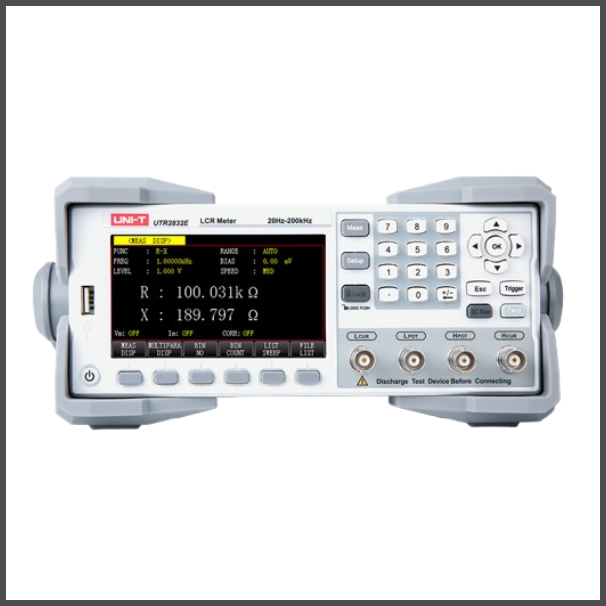

Benchtop LCR Meters, UTR2832E: (200kHz, 0.05%)
SKU: UTR2832E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UTR2832E Benchtop LCR Meter is a high-precision digital bridge used to measure and analyse electronic components and impedance-related factors.
With a maximum test frequency of 200 kHz and a basic accuracy of 0.05%, it is ideal for production quality assurance, inbound inspection, laboratory measurements, and automated manufacturing testing.
The instrument includes a 4.3-inch TFT LCD, multi-parameter display, comparator sorting, sweep testing, and open/short/load calibration.
Its RS-232, Handler, USB Host, USB Device, and LAN interfaces enable integration with PC-based and automated test systems.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Maximum test frequency of 200 kHz.
Basic accuracy of 0.05%.
6-bit display.
Maximum test rate of 80 readings/s.
DCR (DC resistance) measurement.
Measures multiple electrical parameters, including:
Inductance (L).
Capacitance (C).
Resistance (R).
Impedance (|Z|).
Dissipation factor (D).
Quality factor (Q).
Admittance (|Y|).
Conductance (G).
Reactance (X).
Phase angle (θ).
DCR (RDC).
4.3-inch TFT LCD, 480 × 272 pixels.
Displays up to four measurement parameters simultaneously.
Multi-reference comparator for component quality evaluation.
10-level filtering.
10-level comparator sorting.
List sweep testing with up to 201 points.
Frequency, AC voltage, AC current and DC bias sweep functions.
Open circuit, short-circuit and load calibration.
Relative value measurement.
Vm/Im monitoring.
Automatic level adjustment.
Series and parallel equivalent circuit modes.
Auto and hold range modes.
Internal, manual, external and bus trigger modes.
Data averaging from 1–255 readings.
Internal and USB storage.
RS-232, Handler, USB Host and USB Device interfaces.
LAN interface.
Suitable for production-line quality assurance, incoming inspection and automated production testing.
Specifications:
Product Type: Benchtop LCR Meter / LCR Digital Bridge.
Frequency Range: 20 Hz–200 kHz.
Maximum Test Frequency: 200 kHz.
Basic Accuracy: 0.05%.
Display Count: 6-bit.
Maximum Test Rate: 80 readings/s.
DCR Measurement: Yes.
AC Test Level: 10 mVrms–2 Vrms.
AC Source Resistance: 100 Ω standard; 30 Ω / 50 Ω / 100 Ω selectable with ISO OFF.
Resistance (R): 0.00001 Ω–99.9999 MΩ
Reactance (X): 0.00001 Ω–99.9999 MΩ
Conductance (G): 0.00001 µS–99.9999 S.
Inductance (L): 0.00001 µH–99.9999 kH.
Capacitance (C): 0.00001 pF–9.99999 F.
Dissipation Factor (D): 0.00001–9.99999.
Quality Factor (Q): 0.00001–99999.9.
Phase Angle (θ): -179.999° to 179.999°.
DCR: 0.00001 Ω–999.999 MΩ.
Test-Side Configuration: 5-terminal.
Calibration: Open / Short / Load.
List Sweep: Up to 201 points.
Equivalent Circuit Mode: Series / Parallel.
Range Mode: Auto / Hold.
Trigger Modes: Internal / Manual / External / Bus.
Average Times: 1–255.
Comparator: 10-level sorting.
Storage: Internal / USB.
Interfaces: RS-232 / Handler / USB Host / USB Device / LAN.
Display: 4.3-inch TFT LCD, 480 × 272 pixels.
