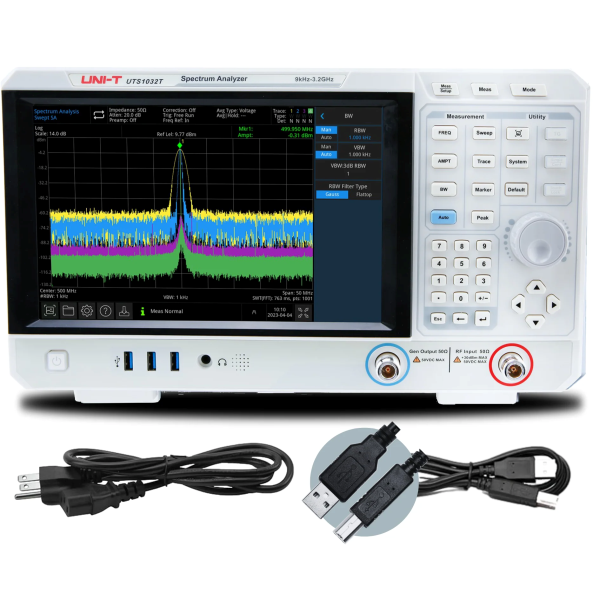

Spectrum/Signal Analyzers, UTS1032T 3.2GHz Advanced-Series
SKU: UTS1032T
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
UTS1000B Series, Spectrum/Signal Analysers:
Frequency range: 9 kHz–3.2 GHz.
Resolution bandwidth: 1 Hz to 1 MHz
Tracking frequency range: 100 kHz to 3.2 GHz.
DANL: -161 dBm.
Phase noise: <-98 dBc/Hz (1 GHz typical).
The number of scanning points displayed is 10001.
Analysis functions include EMI analysis, sophisticated measurement, and analog and digital demodulation analysis.
Display: 10.1" TFT LCD (1280x800) touch screen.
Interface: HDMI, USB host, USB device, LAN, and 3.5mm audio.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UTS1000B Series, Spectrum/Signal Analysers.
Frequency Range 9kHz–3.2GHz.
RBW 1Hz–1MHz
DANL -161dBm/Hz.
Traces 4.
Scan Points 10,001.
Tracking Generator Included.
Display Size (in) 10.1in.
Touchscreen Yes.
Warranty 3 years.
Product Dimensions (L x W x H) 15 in x 9 in x 5 in.
Product Weight 10 lb.
Certifications CE/cETLus/UKCA.
