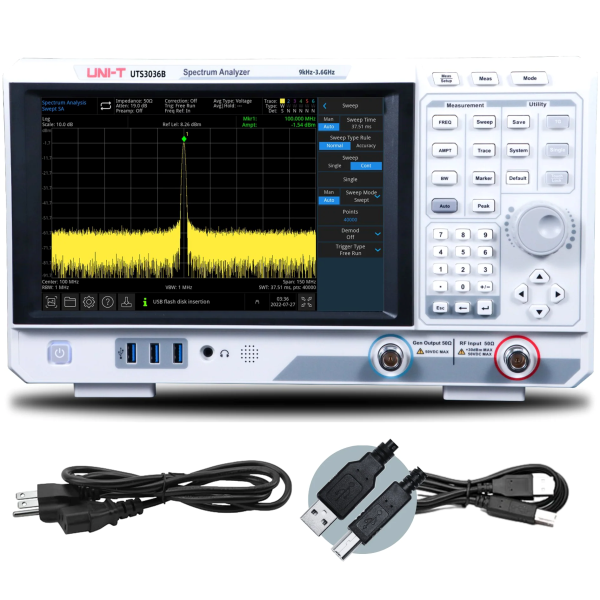

Spectrum/Signal Analyzers, UTS3036B 3.6GHz Performance-Series Spectrum Analyzer
SKU: UTS3036B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
UTS3000B Series, Spectrum/Signal Analysers:
Frequency measurement range: 9 kHz-2.1 GHz, 9 kHz-3.6 GHz, and 9 kHz-8.4 GHz.
The display average noise level can be as low as -161 dBm/Hz (typical value).
Phase noise is less than -98 dBc/Hz (offset 10 kHz is common).
Full amplitude accuracy is <0.7 db.
There are up to 40,001 scanning spots.
Minimum resolution bandwidth (RBW): 1 Hz.
Advanced function: one key measurement (optional).
The EMI pre-compliance analysis function is optional.
Analog demodulation analysis support is optional.
Support for digital demodulation analysis (optional).
Support the tracking source output function (optional).
10.1-inch HD capacitive touch screen with a resolution of 1280 x 800.
Provide USB/LAN interfaces and support the SCPI protocol.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UTS3000B Series, Spectrum/Signal Analysers.
Frequency Range 9kHz–3.6GHz.
RBW 1Hz-3MHz
DANL -161dBm/Hz
Traces 6.
Scan Points 40,001.
Tracking Generator Optional.
Display Size (in) 10.1in.
Touchscreen Yes.
Warranty 3 years.
Product Dimensions (L x W x H) 15 in x 9 in x 5 in.
Product Weight 10 lb.
Certifications CE/cETLus/UKCA.
