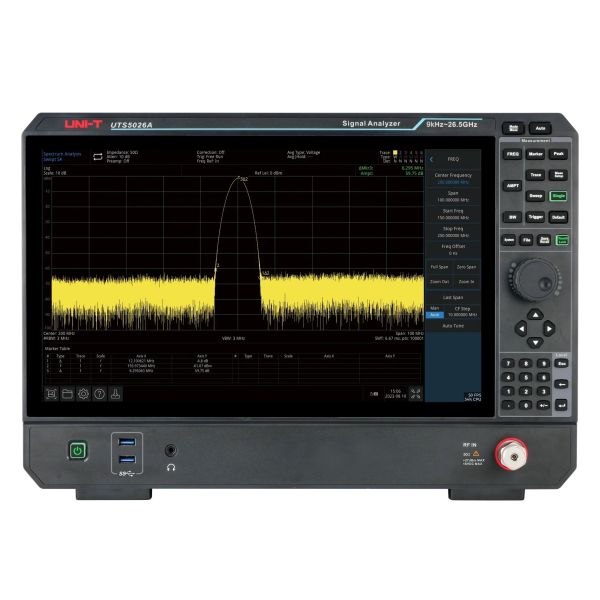

Signal Analyzers, UTS5026A 26.5GHz Performance-Series Signal Analyzer
SKU: UTS5026A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
UTS5000A Series, Signal Analysers:
Frequency range: 9 kHz to 26.5 GHz.
DANL = -163 dBm (average value).
Phase noise is typically less than -107 dBc/Hz at 10 kHz offset.
Scan up to 100001 points.
Minimum resolution bandwidth (RBW): 1 Hz.
Support sophisticated one-key measurements (optional).
EMI Analysis Function (Optional).
Analog demodulation analysis support is available (optional).
Support Digital Demodulation Analysis (optional).
Support I/Q analysis (optional).
Configuration: 15.6-inch 1920x1080 high-definition thin film transistor LCD display.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UTS5000A Series, Signal Analysers.
Frequency Range 9kHz–26.5GHz.
RBW 1Hz–3MHz (10% step), 4, 5, 6, 8MHz
DANL -163dBm/Hz.
Traces 6.
Scan Points 100,001.
Tracking Generator Not Available.
Display Size (in) 15.6in.
Touchscreen Yes.
Warranty 3 years.
Product Dimensions (L x W x H) 15 in x 9 in x 5 in.
Product Weight 25 lb.
Certifications CE/cETLus/UKCA.
