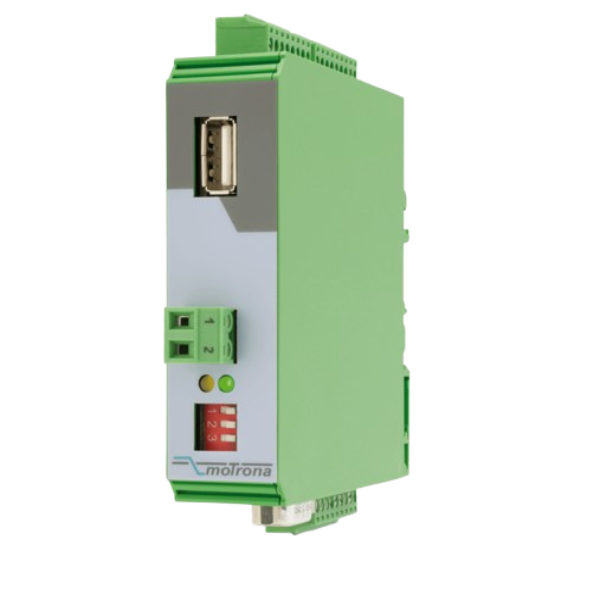

f-U Converter Analog-Frequency resp. Analog-SSI UZ210
SKU: UZ210
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
An adaptable tool for converting analog to frequency signals and vice versa is the Motrona UZ210 Encoder Simulator/Frequency Generator.
It's perfect for producing exact frequencies in lab environments and for testing and calibrating encoder-based devices.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Analog Input: Scalable 14-bit analog input for ±10 V or 0/4 ... 20 mA.
Pulse Output: HTL or RS422 format with A, B, Z, /Z signals.
SSI Output: DATA+, DATA-, CLOCK+, CLOCK- up to 25-bit.
Frequency Output: Up to 1 MHz.
Control Inputs: 4 control inputs for PNP signals (10 ... 30 VDC).
Power Supply: 12 ... 30 VDC.
Housing: Snap-on housing for top hat rail (EN 60715).
Interfaces: USB, RS232, and RS485 for programming and data readout.
User Modes: Programmable V/f characteristics, curves with repeating cycles, and additional control functions.
