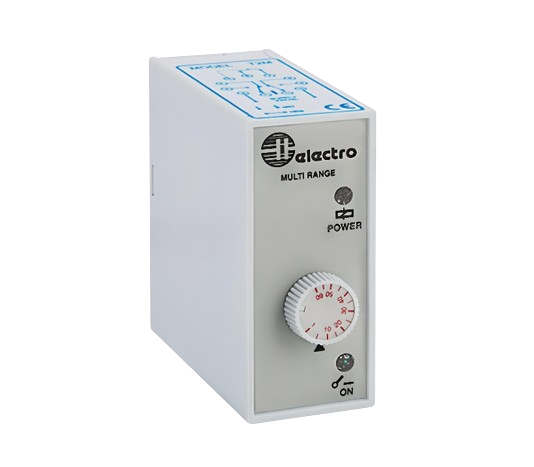

VOLTAGE MONITOR 40-400VAC, 230VAC
SKU: V1C230A400MV
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Voltage Indicator:
Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
An accurate UNDER/OVER voltage monitoring relay is the V1C.
The device is perfect for a variety of voltage monitoring applications because it can be ordered in a wide range of AC and DC voltages.
Separate potentiometers can be used to modify the hysteresis and set point.
Additionally, the machine has a latch feature to stop unnoticed malfunctions.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Integrated SPDT relay latch facility with 10A output.
Isolated input voltage measurement.
Relay monitoring for voltage regulation.
Light-emitting diode (LEO) with relay on.
Potentiometer with movable voltage thresholds.
Adjustable hysteresis limits via potentiometer.
Selecting the rear DIP switch for a 10-second startup delay.
Selection of UNDER/OVER voltage via rear DIP switch.
Voltage monitor:
CONTACT: 10A SPDT
FUNCTION: Over or under
STANDARD MEASURING RANGES: 4, 40, 400VAC/DC
HYSTERESIS: 5-50%
RATED VOLTAGE: 250V
MECHANICAL LIFE: 10x106 cycles
PROTECTION INDEX IP: IP 20
OPERATING TEMPERATURE: -10 to + 50°C
STORAGE TEMPERATURE: -50 to + 85°C
DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
