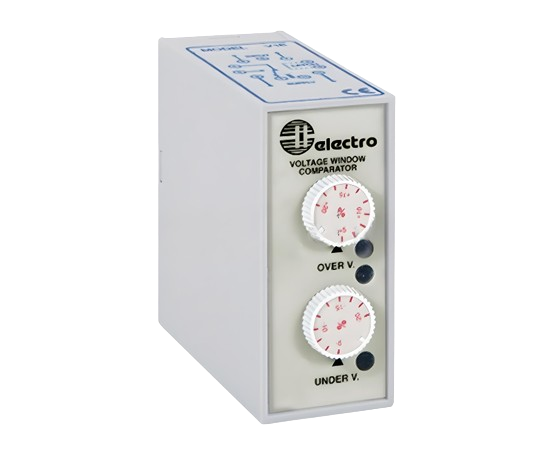

VOLTAGE MONITOR RELAY 1 PHASE 230VAC
SKU: V1E230A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Monitoring of over/under voltage (including phase breakdown):
Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
Keeps an eye on their own supply.
The relay will only function if all three phases are present and in order and the supply voltage is between the predetermined OVER and UNDER voltage limitations.
Supplying efficient protection and supervision for the power supply.
Buy currently uses Select Automation shop pricing and checkout.
Features:
10A SPDT output with a 10-second startup lag.
180-second reaction delay was introduced into the latch facility.
Protection against over- and under-voltage.
Actions regarding one's own power source.
LED indication of excess or low voltage.
Limits, both upper and lower individually adjustable.
Limits, both upper and lower individually adjustable.
Protection against phase failure and phase reversal.
Checks to see if the phase-to-neutral voltage is present, within specified bounds, and in order.
Measurement and monitoring relays for controlling the neutral voltage in the upper and lower phases.
Over / under voltage monitor (incorporating phase failure):
CONTACT: 10A SPDT
PHASE: Single phase
FUNCTION: Over and under
RATED VOLTAGE: 250V
MECHANICAL LIFE: 10x106 cycles
PROTECTION INDEX IP: IP 20
OPERATING TEMPERATURE: -10 to + 50°C
STORAGE TEMPERATURE: -50 to + 85°C
DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
