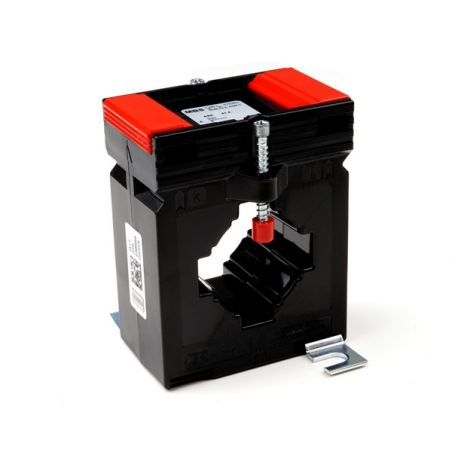

ASK 41.4 500/5A CURRENT TRANSFORMER CLASS 0.2S

Transformers for current ASK 41.4: Class E isolation Um < 0.72 kV maximum operating voltage 50 Hz nominal frequency (others upon request) Thermal short-time current nominal: Ith = 60 x In FS 5 serves as the over-current limiting factor up to 1500 A nominal current. MBS AG current transformers fully abide with: IEC 61869/1+2 - VBG 4 - DIN 42600 - DIN VDE 0414/1 5A secondary class 0.2 current transformers
