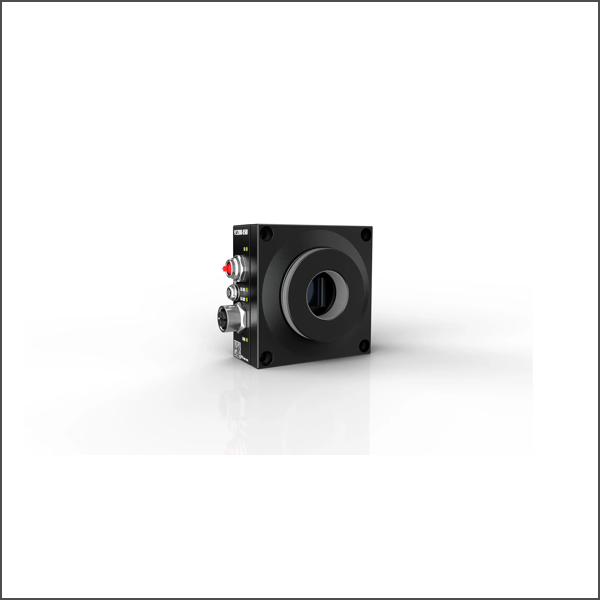

Area scan camera VCS2031-2400
SKU: VCS2031-2400
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The robust VCS20x1 industrial camera with IP65/67 protection generates high-quality monochrome images for industrial image processing applications. What’s more, the image sensor also features integrated polarization filters. Power is supplied via EtherCAT P. As a full-featured device, it can be synchronized with all EtherCAT-based machine processes. The image data is transmitted to the higher-level controller with a bandwidth of 2.5 Gbit/s.
Buy currently uses Select Automation shop pricing and checkout.
Product category: cameras
Category/version: area scan camera
Transmission rate: 2.5 Gbit/s
Sensor: Sony IMX540, CMOS, global shutter
Sensor size: 1.2" (19.3 mm)
Spectral sensitivity: color
Number of pixels: 24.6 MP
Pixel size: 2.74 µm
Image resolution (H x V): 5328 x 4608
Max. frame rate: 11 fps
Bit depth: 12
Pixel formats: Mono8, Mono10, Mono10p, Mono12, Mono12p, BayerGR
Ethernet: 1000/2500BASE-T
Power supply: mode 1: EtherCAT P
mode 2: 24 V DC (-15 %/+20 %)
Max. power consumption: 9 W
Connection method: M8, socket, 4-pin, P-coded
M12, socket, 8-pin, X-coded
Lens mount: C-mount
Protection rating: IP65/67, with lens protection tube and connector
Weight: 320 g
Dimensions (W x H x D): 72 mm x 72 mm x 38.4 mm
Operating temperature: -10…+60 °C
Approvals/markings: CE, UL, UKCA, EAC, RoHS, WEEE
