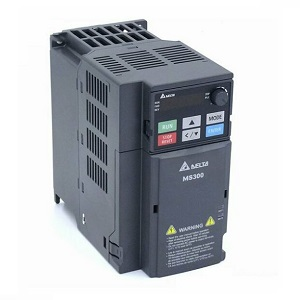

2.2KW 220V 1PH MS DRIVE
SKU: VFD11AMS21ANS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Compact drives from the MS300 series:
Motor drives from the MS300 series, optimized for space use and up to 40% smaller than previous models.
They facilitate rapid acceleration and deceleration and high-speed start-up for both permanent magnet and induction motors.
Perfect for: electrical devices, fans, woodworking and packaging machinery, machine tools, textile machines.
Method of control: V/F, SVC
Maximum output frequency ranges from 0 to 599 Hz (high speed models: 0 to 1500 Hz).
Frequency settings: 4 - 20mA, 1 pulse input/input (33KHz), 0 - +10V/+10 - -10V.
Protection for motors against overcurrent, overvoltage, overheating, and phase failure.
Tolerance for overload: Heavy duty: 150% for 60 seconds and 200% for 3 seconds of the rated output current.
Tolerance for overload: Normal duty: 120 seconds at 120% of the rated output current, and three seconds at 150%.
Buy currently uses Select Automation shop pricing and checkout.
Features:
PLC functionality built-in (2K steps functionality).
Dynamic Braking Transistor (brake chopper) built in.
5-digit LED keypad that can be removed for remote operation.
Up to four IM motor control settings can be supported by multi-motor control.
Simple setup with a range of pre-loaded, selectable parameters for diverse applications.
Compliance with safety standards: The SIL2/PLd function, or safe torque off, provides a high level of machine safety.
Integrated USB port for easy and quick software updates, parameter editing and copying, and tuning (even while the mains are off).
IEC 60721-3-3 class 3C2 new PCB coating and thermal design appropriate for severe conditions.
RS-485 connectivity built-in (available via option cards for Profibus DP, DeviceNet, Modbus TCP, EtherNet/IP, and CANopen).
SERIES MS300:
MOTOR RATING: 2.2kW.
VOLTAGE: 180 - 264.
PHASE: Single phase input/three phase output voltage.
Description: Single-phase AC motor drive.
FRAME SIZE: C1.
DIMENSIONS (MM): (H)157 x (W)87 x (D)152.
