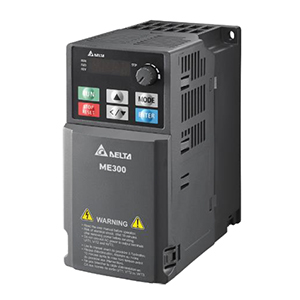

400W 400V 3PH ME DRIVE
SKU: VFD1A5ME43ANN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Compact drives from the ME300 series:
The new ME300 series of small vector-controlled drives supports both IM and PM motors and comes with standard key built-in capabilities such as built-in brake chopper, multi-pump control, and RS-485 (Modbus) connectivity.
Buy currently uses Select Automation shop pricing and checkout.
SERIES: ME300
Supports an input signal with a high-speed pulse frequency of 33 kHz.
High initial torque (rated at 05 Hz, up to 200% attained).
Electromagnetic interference is successfully reduced by the built-in Class A (C2) EMC filter (for 3-phase only).
For remote operation, a 4-digit LED keypad with function keys and a frequency adjust knob.
MOTOR RATING: 400W
VOLTAGE: 380 - 480 V
PHASE: Three phases
Description: Single-phase AC motor drive
FRAME SIZE: A4
DIMENSIONS (MM): (H) 128 x (W) 68 x (D) 113
