45KW 3PH ELEVATOR DRIVE
SKU: VFD450ED43S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

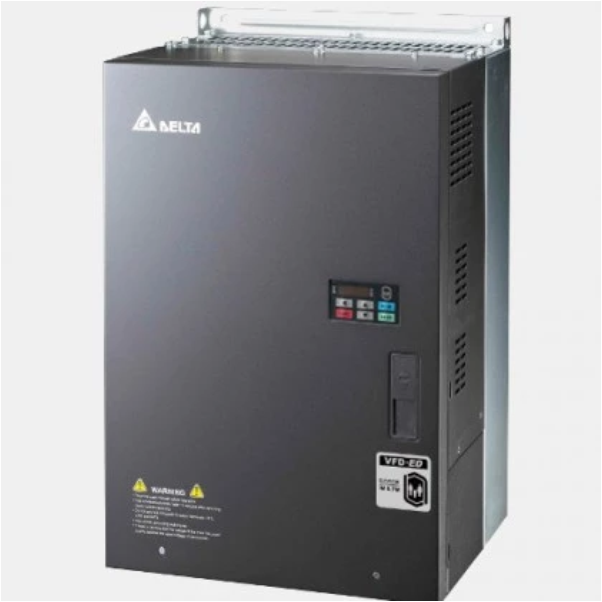

High-performance 45kW three-phase elevator drives from Delta Electronics' ED series include the VFD450ED43S.
For elevator applications, this drive is made to offer smooth operation and accurate control.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Power Rating: 45kW.
Input Voltage: Three-phase 380-460V AC.
Output Current: 73A.
Control Method: V/F, VF+PG, SVC, FOC+PG, FOC+PM.
Cooling Method: Fan cooling.
Protection: Overload, over-voltage, under-voltage, and short-circuit protection.
Dimensions: 550 x 330 x 274 mm.
IP Level: IP20.
Additional Features: Auto-tuning with load attached, dual-output protection, built-in MODBUS/CANbus communication interface, supports both asynchronous and synchronous motors, precise time sequence for elevator motion (start/stop), auto-correct start torque, load compensation with manual adjustment, DC braking level and slip compensation enhancing the leveling accuracy, built-in STO (Safe Torque Off) function, supports 1-phase 230 VAC UPS (light-load direction search function triggered automatically on power failure).
