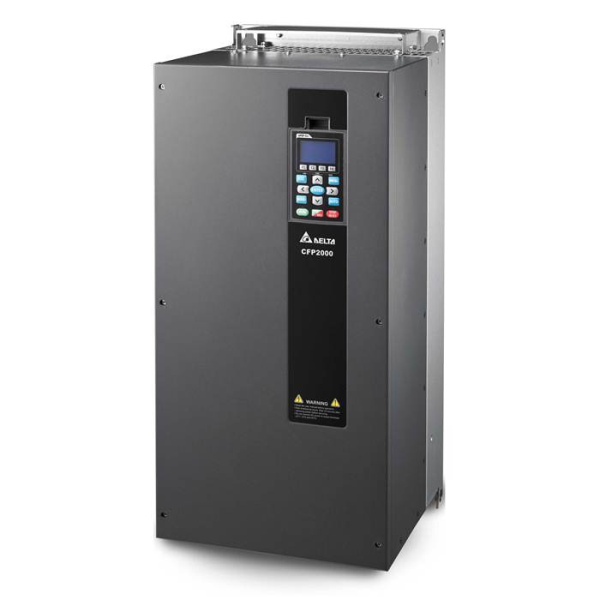

75KW CFP2000 IP55 DRIVE
SKU: VFD750FP4EA-52
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
A high-performance 75kW three-phase AC motor drive from Delta Electronics' CFP2000 series is the VFD750FP4EA-52.
Its optimal performance and energy efficiency are guaranteed by its unique design for HVAC, fan, and pump applications.
With its IP55 housing, this drive is well protected from dust, water, and other contaminants.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Power Rating: 75kW.
Input Voltage: Three-phase 380-460V AC.
Output Voltage: Three-phase 380-460V AC.
Output Current: 150A.
Control Method: Sensor less vector control.
Frequency Range: 0.1 to 600 Hz.
Protection: Overload, over-voltage, under-voltage, and short-circuit protection.
Additional Features: Built-in PLC function, modular design with flexible extension cards, IP55 rated for dust and water protection, and built-in EMI filter.
SERIES CFP2000:
MOTOR RATING: 75.0kW
PROTECTION INDEX: IP55
PHASE: Three phases
Description: Three-phase AC motor drive
FRAME SIZE: D2
DIMENSIONS (MM): (H) 770 x (W) 370 x (D) 335
