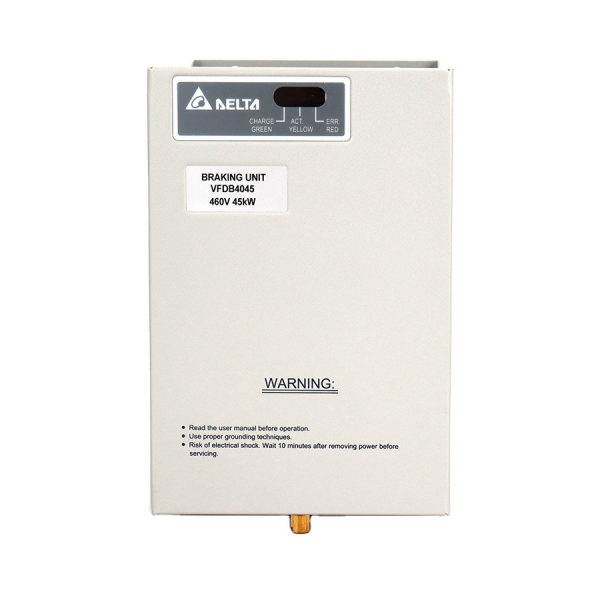

VFDB BRAKE UNIT -45kW
SKU: VFDB4045
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Delta Electronics' VFDB4045 is a brake unit designed to collect motor regeneration energy as a three-phase induction motor decelerates.
This energy is dissipated using specific braking resistors, resulting in safe and efficient operation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Max Motor Capacity: 45 kW.
Max Peak Discharge Current: 60 A.
Continuous Discharge Current: 18 A.
Braking Start-up Voltage: 660/690/720/760/800/830 ±6V DC.
DC Voltage Range: 400-800VDC.
Heat Sink Overheat Temperature: Over +95°C.
Alarm Output: Relay contact 5A120VAC/28VDC (RA, RB, RC).
Installation Location: Indoor (no corrosive gases, metallic dust).
Operating Temperature: -10°C to +50°C.
Storage Temperature: -20°C to +60°C.
