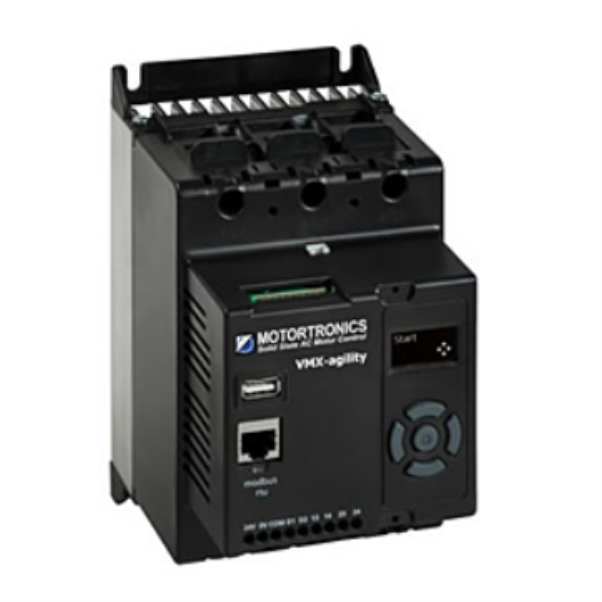

Motortronics Agility Soft Starter, 22A
SKU: VMX-AGY-103
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
IEC Compact Soft Starter VMX-agility:
VMX-agility™ is designed to meet the high needs of industrial automation motor control clients.
VMX-agility™ provides consistent, organized start and stop ramps for optimal performance.
One standard frame size is suitable for applications ranging from 3–350 at 200–600 VAC.
Motor overload protection:
The intelligent thermal memory retention protects the motor and soft starter from overloading at full I²t.
Monitor overloads to reduce motor heating even with VMX-agility™ turned off.
This, paired with protection and diagnostics, gives the operator peace of mind when running the motor.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operational voltage ranges from 200 – 600 VAC.
Rated Frequency: 50–60 Hz (± 5 Hz).
Index Rating: Trip Class 10: 3.5–17: 90–5 (Trip Class 20 and 30).
Starts per hour Standard: 5 starts and stops per hour (40 with the fan option).
Internally bypassed: Yes.
OLED screen.
Control Supply: Standard 24 VDC, 110 to 230 VAC with Power Supply Option.
Inputs: 2 digital and 1 programmable.
Overload: Full I2T Motor Overload with Memory.
Communication protocol: Modbus RTU.
Yes, full logging functionality is available with commissioning software.
IP/NEMA rating: IP20/NEMA Class 1 (*with finger guard fitted).
Ambient temperature ranges from 4°–104°F (-20°–40°C) without de-rating and 140°F (60°C) with de-rating.
Standards: UL, RCM, and CE.
Languages: English, French, German, Spanish, Portuguese, and Italian.
2-year warranty.
22 amps.
Trip Class 10 AC-53a 3.5-17: 90-05⁴.
Trip Class 20 AC-53a 4-19: 90-5⁴.
Trip Class 30 AC-53A Amps 200V 4-29: 90-5⁴.
Dimensions (mm): 181 x 108 x 148.
Weight in kg: 1.97.
Event logging:
VMX-agility™ life event logging is a special feature that monitors the last 1600 events, enabling fast, reliable fault analysis and resolution.
Recording various activities such as start, stop, top of ramp, faults, application parameters (time, overload level, currents, frequency), and device information.
Event logs can be downloaded through the VMX-agility commissioning software or through a USB interface.
Soft stopping:
Water hammers can be eliminated with Soft Stop Control.
When you activate the stop signal, your pump motor's output torque gradually decreases.
Check valves are now softly shut, and other parts of the fluid system are spared the force and potentially catastrophic effects of a water hammer.
