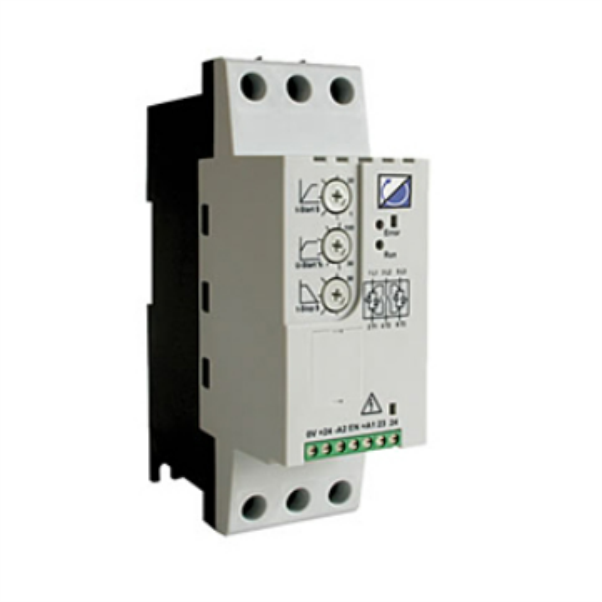

Motortronics PFE Soft Starter, 4.8A
SKU: VMX-PFE-08
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Motortronics PFE Soft Starter Key Features:
A soft starter that is cost-effective for small AC induction motors.
Overcurrent protection: Protects the soft starter from exceeding its duty rating.
Internally bypassed:
Reduces costs after the bypass is activated.
Reduces cabinet space and produces less heat.
Only 1.8" wide (Size 1): Same width as a standard contactor, enabling a more compact cabinet to be used.
Din-Rail Mount: It simply clamps on, enabling an effortless installation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
The operational voltage range is 230–460 Vac (-15/+10%).
Rated Frequency: 50–60 Hz +/– 2 Hz.
Index Rating: Class 10 (Ie: AC53b): 3-23: 697.
Start/Stop per Hour: 5 (maximum) in Class 10.
Maximum number of starts and stops per hour: 30; Class 10 with an optional fan.
Internally bypassed: Yes.
Control Supply: 24Vdc (approx. 4VA) supplied externally to terminals 0V–24V.
Enabled and Start/Soft Stop: 24VDC galvanically isolated terminals -A2, EN, and +A1.
Indication: Multifunction LEDs on the front panel.
Start time: 1–30 seconds.
Stop Time: 0–30 seconds.
Start Duty: 3 x FLCs for 23 seconds at Trip Class 10 rating.
Power terminals:
Input: 1/L1, 3/L2, 5/L3.
Output: 4/T2, 6/T3, and 2/T1.
Wire clamping terminals with an IP20 rating.
Enclosure: UL-evaluated open type/IP20.
Ambient Temperature: 0° to 104°F (without de-rating).
Transportation/storage:
-13°F to 140°F.
-13°F to 167°F (not to exceed 24 hours).
Altitude: 3280 ft (1000 m); above 328 feet (1000 m) de-rate linearly by 1% of unit FLC each 328 ft (100 m); above 6562 ft (2000 m), contact factory.
Standards: IEC 60947-4-2; EN 60947-4-2, "AC Semiconductor Motor Controllers and Starters" (UL, CE).
4.8 Amps.
Trip class 10 PFE model 5 starts per hour. Therefore, AC-53b: 3-23: 697.
Dimensions (mm): 140 x 45 x 120.
Weight (kg): 0.4.
