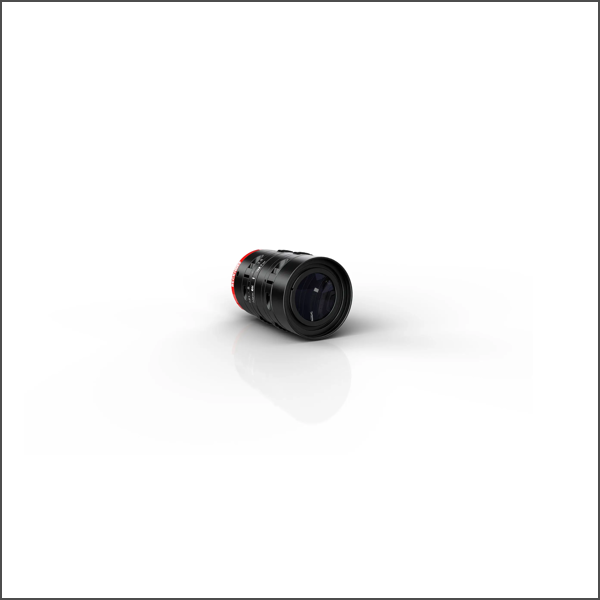

Camera lens VOS3000-3528
SKU: VOS3000-3528
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
With its robust and easy-to-mount design, the VOS3000 C-mount lens is ideal for use in harsh industrial automation environments. In addition to being straightforward to adjust, the focus and fixed aperture can be locked easily and precisely using compact screws. The broadband anti-reflection coating ranges from 420 nm to 1050 nm, while the vibration resistance facilitates reliable measurements in the visible and near infrared region. The VOS3000 is suitable for camera sensors up to a format of 1.2 inches.
Buy currently uses Select Automation shop pricing and checkout.
Image circle: Ø 19.3 mm
Pixel size: 2.0 µm
Focal length: 35 mm
Aperture: f/2.8…f/16
Aperture setting: manual
Sensor size: 1.2" (19.3 mm)
Max. angle of view: 13.7° x 10.3°
Resolution: 250 lp/mm
Working distance lower range: 100 mm
Working distance upper range: infinity
Spectral range: 420…1050 nm
Lens mount: C-mount
Filter thread: M40.5 x 0.5
Dimensions (Ø x D): 44 x 72.1 mm
Protection rating: IP67, with lens protection tube
Operating temperature: 0…+60 °C
Storage temperature: -10…+60 °C
Vibration/shock resistance: IEC60068-2-6
