HOLLOW WALL MOUNT BRACKET
SKU: VZ696N
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Golf series distribution boards:

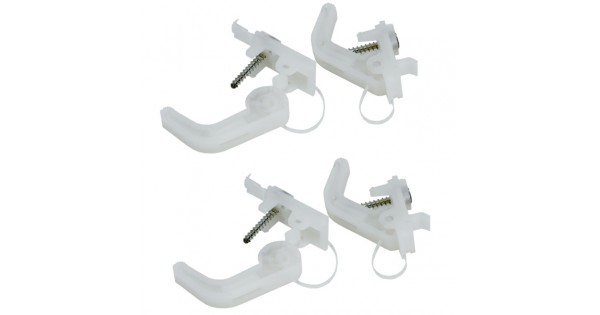

Specifically for the Golf series, the Hager VZ696N Hollow Wall attach Bracket is made to attach enclosures into hollow walls safely.
This bracket is perfect for a variety of electrical distribution applications since it guarantees a sturdy and dependable installation.
The VZ696N, which is made of premium polystyrene, offers solidity and durability, guaranteeing that your enclosures stay firmly in place.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Dimensions:
Insertion Depth: 50 mm.
Depth of Installed Product: 60 mm.
Internal Depth: 60 mm.
Height of Installed Product: 67 mm.
Width of Installed Product: 17.5 mm.
Material: Polystyrene (PS).
Colour: Pure white (RAL 9010).
Mounting Method: Screwed.
Surface Treatment: Untreated.
Accessories Included: Fastening parts/set.
Standards and Approvals:
GWT Glow Wire Test: 850°C.
European Directive WEEE: Not concerned.
IK Protection Code Against Mechanical Impacts: IK07.
Protection Class: Isol.class II.
REACH Conform: Yes.
RoHS Conform: Yes.
Halogen Free: Yes.
