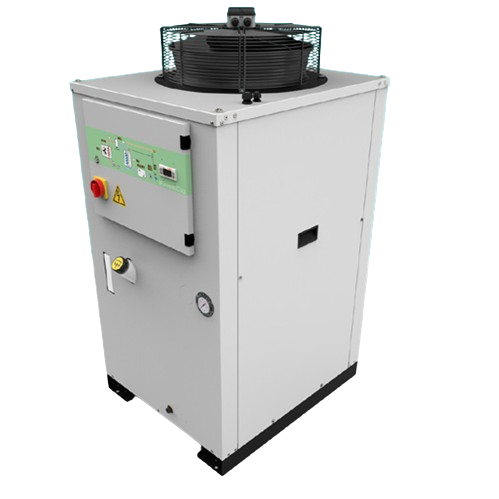

Liquid Chillers 16,66 KW Cooling Capacity
SKU: WRA50
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Energy efficiency and dependability:
The WRA ERP liquid chillers are the outcome of a design that prioritized extreme configurability, extended working limits, energy efficiency, and dependability.
Oversized heat exchangers, standard electronic expansion valves, and high-efficiency fans are just a few examples of the technological innovations that have allowed WRA ERP chillers to achieve high thermodynamic performances that surpass the strictest minimum energy efficiency requirements set by the Eco-design directive, which goes into effect in 2021.
General Features:
Cooling Capacity 5 – 47,5 kW.
Power Supply: 400Vac - 3ph - 50Hz, 460Vac - 3ph - 60Hz.
Refrigerant: R134a (mod.13-18) R410A (mod.20-5A).
IP54 Protection Degree: suitable for outdoor installation.
Scroll compressors.
Plate/shell evaporator.
Non-Ferrous Hydraulic Circuit.
Condenser with finned coil.
Buy currently uses Select Automation shop pricing and checkout.
Liquid And Oil Chillers:
Cooling Capacity (1): 16,66 KW.
Absorbed Power ca (1): 4,45 KW.
Evaporator water flow (1): 47,8 l/min.
EER (without pump) (1): 3,7.
SEPR HT (3): 5,37
Cooling Capacity (2): 12,66.
Absorbed Power (2): 4,42 KW.
Evaporator water flow (2): 36,3 l/min
EER (without pump) (2): 2,9
Electrical data:
Power Supply: 400/3/50 V-ph-Hz.
Auxiliaries feed: 24VAC.
IP Protection Degree: IP54.
Height: 1550 mm.
Width: 740 mm
Operating weight (5): 314 KG.
Shipping weight (5): 204 KG.
