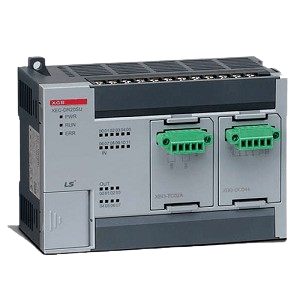

8x 24V DC In 6x NPN Out RS-232 loader 1x Ch RS-232C or RS-485 HSC 1x Opt
SKU: XBC-DN14E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The micro-PLC that provides maximal automation at the lowest possible cost is the XGB series.
With its excellent functionality and performance, it can handle tasks ranging from easy control to difficult ones.
XGB has a user-friendly interface along with multiple network monitoring and diagnosis features as well as a backup function.
Integrated programming environment:
Enhanced user interface with XG5000/XG-PD
Various monitoring functions.
Network diagnosis and monitoring.
Optimum communication environment:
Powerful communications: Built-in RS-232C / 485, 2 Expansions for communication
Network configuration via Ethernet and Cnet I/F
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
8 Digital Inputs 24VDC.
6 Transistor Outputs (Sink Type).
Power supply is AC 110V-230V.
Supply Voltage: 100- 240 V AC.
Relay Output Rating: 2A Resistive.
Max. I/O Points: 384.
Size: 100 x 64 x 90 mm.
1 Expansion slot available (for more digital in/outputs analogue in/outputs etc).
Programming by PC over RS232 connection.
Programmable by free downloadable XG5000 programming software.
Flexible Connectivity using 2 Option Modules.
Two communication ports are available: (1) Serial Programming port and (1) Serial peripheral port (RS232 or RS485) that supports Modbus RTU LS dedicated protocol and user defined protocols.
Powerful Performance Fast Processing Speed (0.24µs/step).
Built-in Functions: RS-232C/485 (1-ch) High-Speed Counter Pulse Catch Input Filter External Interrupt.
Approvals: CE / UL / cUL .
XBC Non-IEC (Master-K Type) PLCs, E / SU / H & XBM Versions.
XBC-E Economic PLC (Master-K), 100-240V AC, 240 n/s Step, XBO Expansion Options Only.
Key benefits:
Compact.
Cost-effective.
LADDER and IEC-1131 programmable.
From 38 to 284 I/O points.
From 94 ns/step to 240 ns/step.
From 4 to 200 K steps.
