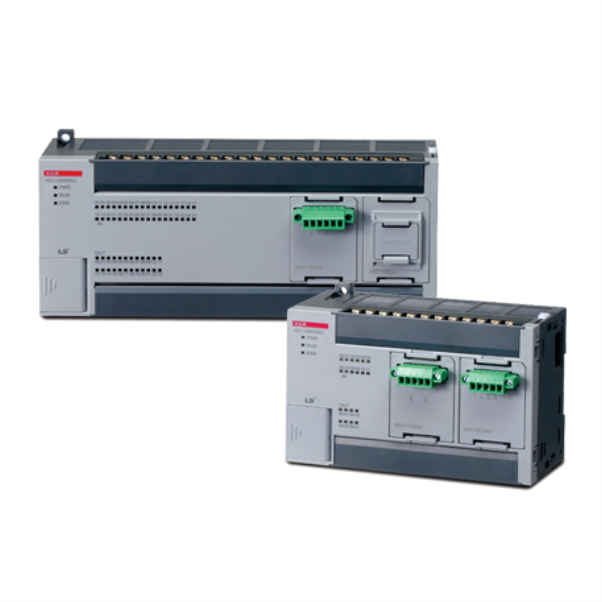

XBC Standard Base Unit SU-Type, 100~240VAC
SKU: XBC-DN20SU
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
LS Electric XGB Series PLC, XBC Standard SU-Type Unit, Expandable (Max. 244 pts) I/O, Expansion Power Provision 1240mA, 110/240VAC Input Power, 12 24VDC Inputs, 8 Transistor Outputs, 0.5A/Point, 2A/COM, 4 COM, 3 Option Slots.
Features:
Flexible Connectivity using up to 7 Expansion Modules
2 Option Modules capability for Expansion
2 Programming Ports (Mini-DIN & USB Mini-B)
2 Peripheral Ports (RS232 & RS485)
Powerful Performance, Fast Processing Speed (0.09µs/step)
Built-in Functions: RS-232C/485 (2-ch), High-Speed Counter, PID Control, PuLS Electrise Catch, Input Filter, External Interrupt, Positioning
Agency Approvals LS Electric: UL / cUL / CE
Rated Voltage: AC 100 ∽ 240 V
Input Voltage Range: AC85∽ 264V (-15%, +10%)
Inrush current: 50APeak or less
Input current: 0.5A or less (220V), 1A or less (110V)
Efficiency: 65%
Rated Output: 1.5A @ DC5V; 0.3A @ DC24V
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operation Voltage: 20.4–28.8VDC (Within Ripple Rate 5%)
Rated Input Voltage: 24VDC
Rated Input Current: 4mA (Contact Point 0–1: 16mA, 2–7: 10mA)
Input Resistance: 5.6kΩ (P00–P07: 2.7kΩ)
Weight: 475gr
Current Consumption: 452mA
Supply voltage: 100~240VAC.
Output Type: Digital Transistor (NPN DC 12/24V)
Programming Language: LD IL
Digital Input/Output: 12 Inputs, 8 Outputs
Expansion: 7 modules (expansion + option) 2 modules (communication)
Input Type Digital DC 24V (NPN/PNP)
Communication Port: 2*RS-232C/RS-485 Program Upload RS-232C USB
Fast Counter: 1 Phase: 8 Channels (100Kpps*2 20Kpps*6 DC 24V) 2 Phase: 4 Channels (50Kpps*1 8Kpps*3 DC 24V)
Transaction Speed: 94ns/Step
PID Control: 16 Cycles
Program Memory: 15Kstep/200KB.
Total Number of I/O: 244
Product Category: Compact PLC (XGB)
Product Type: CPU
XBC-SU Standard PLC (Master-K), Max 7 Exp Cards, 2x Option Mod
Master-K PLC, 100-240V AC, USB, 90 n/s Step, Max 7 Exp. Cards & 2x XBO Options, HSC, Pos
