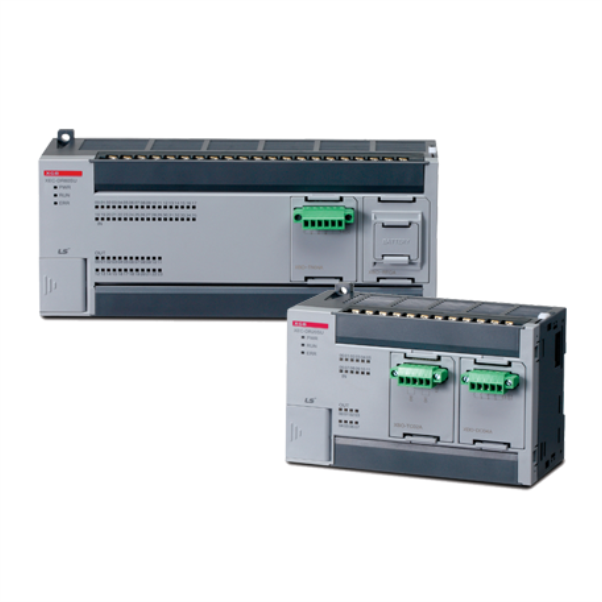

XBC Standard Unit, SU-Type 30 (18 Input, 12 output I/O Points)
SKU: XBC-DN30SU
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Improved user interface with XG-PD and XG5000
Several types of monitoring.
Monitoring and diagnostics of networks.
Strong communication: integrated RS-232C/485, two communication expansions, Ethernet, and Cnet I/F network configuration.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Relay output Rating: 2A Resistive.
Weight: 476gr
Current Consumption: 310mA
Supply voltage: 100~240VAC.
Output Type: Digital Transistor (NPN, DC 12/24V)
Programming Language: LD IL
Digital Input/Output: 18 Inputs 12 Outputs
Expansion: 7 modules (expansion + option) 2 modules (communication)
Input Type: Digital DC 24V (NPN/PNP)
Communication Port: 2*RS-232C/RS-485 Program Upload RS-232C USB
Fast Counter: 1 Phase: 8 Channels (100Kpps*2 20Kpps*6 DC 24V) 2 Phase: 4 Channels (50 Kpps*1 8Kpps*3 DC 24V)
Transaction Speed: 94ns/Step
PID Control: 16 Cycles
Program Memory: 15Kstep/200KB.
Total Number of I/O: 254
Product Category: Compact PLC (XGB)
Product Type: CPU
Size: 135 x 64 x 90 mm
XBC-SU Standard PLC (Master-K), Max 7 Exp Cards, 2x Option Mod
Master-K PLC, 100-240V AC, USB, 90 n/s Step, Max 7 Exp. Cards & 2x XBO Options, HSC, Pos
