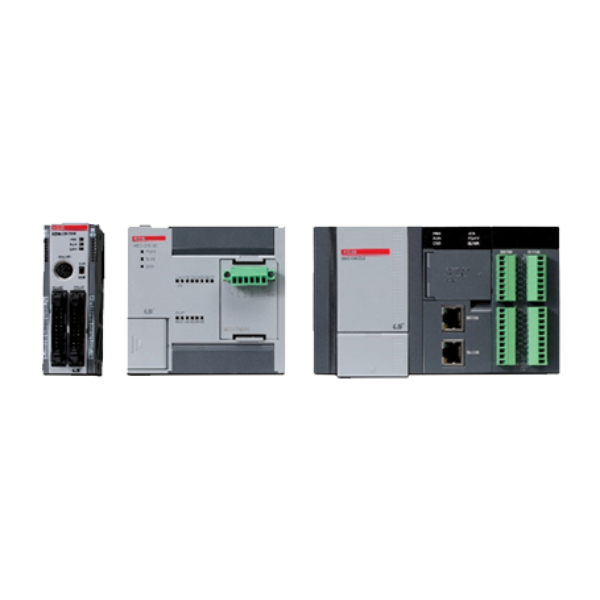

Programmable Logic Control, AC 100V~220V power, DC24V input 16 points, TR output 16 points
SKU: XBC-DN32H
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A high-performance PLC, the LS Electric XBC-DN32H was created to satisfy the rigorous requirements of industrial automation.
This PLC is renowned for its dependability and adaptability and is a member of the XGB series.
It has 16 DC24V input points, 16 transistor (TR) output points, and runs on an AC power source with a range of 100V to 220V.
The XBC-DN32H is designed to deliver accurate management and effective functioning in diverse industrial settings, guaranteeing smooth integration and peak efficiency.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Specs:
Input points: 16 points.
Rated input voltage: DC 24V.
Rated input current: 4mA (Contact 0~7: 9mA).
Operation voltage range: DC 20.4 ~ 28.8V (Ripple rate < 5%).
On voltage / On current: DC 19V or more/3mA or more.
Off voltage / Off current: DC 6V or less/1mA or less.
Input resistance: 5.6kΩ (P00 ~ P07: 2.7kΩ).
Response Time: (Off → On) 1/3/5/10/20/70/100 Ms, (On → Off) (Setting by CPU parameter) Initial value: 3ms.
Transistor output:
Output point: 16 points.
Insulation method: Photo coupler insulation.
Rated load voltage: DC 12/24V.
Load voltage range: DC 10.2 ~ 26.4 V.
Max. load voltage: 0.5A / 1point (P20 ~ 23: 0.1A/point).
Off leakage current: 0.1mA or less.
Max. inrush current: 4A/10ms or less.
Max. voltage drop (On): DC 0.4V or less.
Surge absorber: Zener Diode.
Response time: (Off → On) 1ms or less, (On → Off) 1ms or less (Rated load, resistive load).
Common method: 4 points/COM.
External power Supply:
Voltage: DC 12/24V ± 10% (Ripple voltage 4 VP-p or less).
Current: 10mA or less (DC 24V connection).
