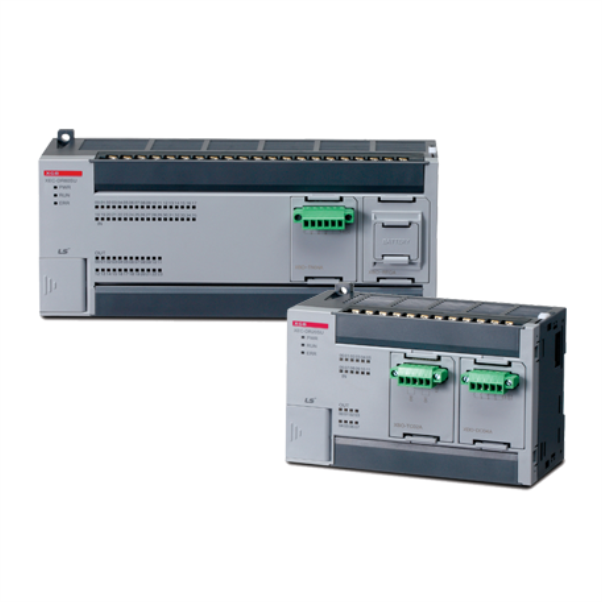

XBC Standard Unit SU-Type, 40 (24 Input, 16 Output I/O Points)
SKU: XBC-DN40SU
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Improved user interface with XG-PD and XG5000
Several types of monitoring.
Monitoring and diagnostics of networks.
Strong communication: integrated RS-232C/485, two communication expansions, Ethernet, and Cnet I/F network configuration
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Weight: 578gr
Current Consumption: 288mA
Supply voltage: 100~240VAC.
Output Type: Digital Transistor (NPN DC 12/24V)
Other Feature: Programming Language: LD IL
Digital Input/Output: 24 Inputs 16 Outputs
Expansion: 7 modules (expansion + option) 2 modules (communication)
Input Type: Digital DC 24V (NPN/PNP)
Communication Port: 2*RS-232C/RS-485 Program Upload RS-232C USB
Fast Counter: 1 Phase: 8 Channels (100Kpps*2 20Kpps*6 DC 24V) 2 Phase: 4 Channels (50 Kpps*1 8Kpps*3 DC 24V)
Transaction Speed: 94ns/Step
PID Control: 16 Cycles
Program Memory: 15Kstep/200KB.
Total Number of I/O: 264
Product Category: Compact PLC (XGB)
Product Type: CPU
XBC-SU Standard PLC (Master-K), Max 7 Exp Cards, 2x Option Mod
Master-K PLC, 100-240V AC, USB, 90 n/s Step, Max 7 Exp. Cards & 2x XBO Options, HSC, Pos
