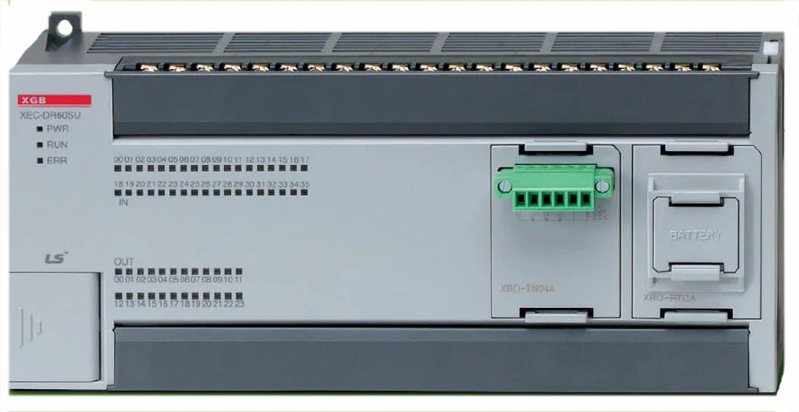

36 x 24V DC In 24 x NPN Out PS2/USB loader 1 Ch ea RS-232 and RS-485 HSC
SKU: XBC-DN60SU
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The micro-PLC that provides maximal automation at the lowest possible cost is the XGB series.
With its excellent functionality and performance, it can handle tasks ranging from easy control to difficult ones.
XGB has a user-friendly interface along with multiple network monitoring and diagnosis features, as well as a backup function.
Integrated programming environment:
Enhanced user interface with XG5000/XG-PD
Various monitoring functions.
Network diagnosis and monitoring.
Optimum communication environment:
Powerful communications: Built-in RS-232C / 485, 2 Expansions for communicationNetwork configuration via Ethernet and Cnet I/F
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage: 100-140V AC.
Program capacity: 15k steps.
Relay Output Rating: 2A Resistive.
Max. I/O points: 384.
Analogue, Input-, Output Resolution: 14-Bit.
PID Control.
High Speed Inputs.
Positioning.
Size: 135 x 64 x 90 mm.
DC input: 36 points.
Transistor output: 24 points.
Rated voltage: AC110V~220V.
Internal current consumption: 340 mA.
Key benefits:
Compact.
Cost-effective.
LADDER and IEC-1131 programmable.
From 38 to 284 I/O points.
From 94 ns/step to 240 ns/step.
From 4 to 200 K steps.
