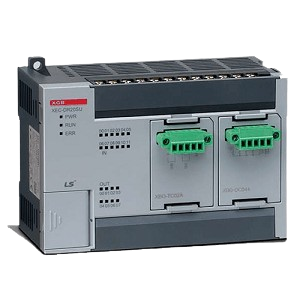

6x 24V DC In 4x PNP Out RS-232 loader 1x Ch RS-232C or RS-485 HSC 1x Opt
SKU: XBC-DP10E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The micro-PLC that provides maximal automation at the lowest possible cost is the XGB series.
With its excellent functionality and performance, it can handle tasks ranging from easy control to difficult ones.
XGB has a user-friendly interface along with multiple network monitoring and diagnosis features, as well as a backup function.
Integrated programming environment:
Improved user interface with XG-PD and XG5000
Several types of monitoring.
Monitoring and diagnostics of networks.
Optimum communication environment:
Strong communication: integrated RS-232C/485, two communication expansions, Ethernet, and Cnet I/F network configuration.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage: 100-240V AC.
Program Capacity: 15k steps.
Relay Output Rating: 2A Resistive.
Max. I/O Points: 384
Input-, Output Resolution: 14-Bit
PID Control
High Speed Inputs
Positioning
Size: 100 x 64 x 90 mm
XBC Economic E-Type Unit
110/240VAC Input Power
6 x 24VDC Digital Inputs
4 Transistor Outputs (sink)
1 Option slot
XBC Non-IEC (Master-K Type) PLCs, E / SU / H & XBM Versions
XBC-E Economic PLC (Master-K), 100-240V AC, 240 n/s Step, XBO Expansion Options Only
Key benefits:
Compact
Cost-effective
LADDER and IEC-1131 programmable.
From 38 to 284 I/O points
From 94 ns/step to 240 ns/step
From 4 to 200 K steps
